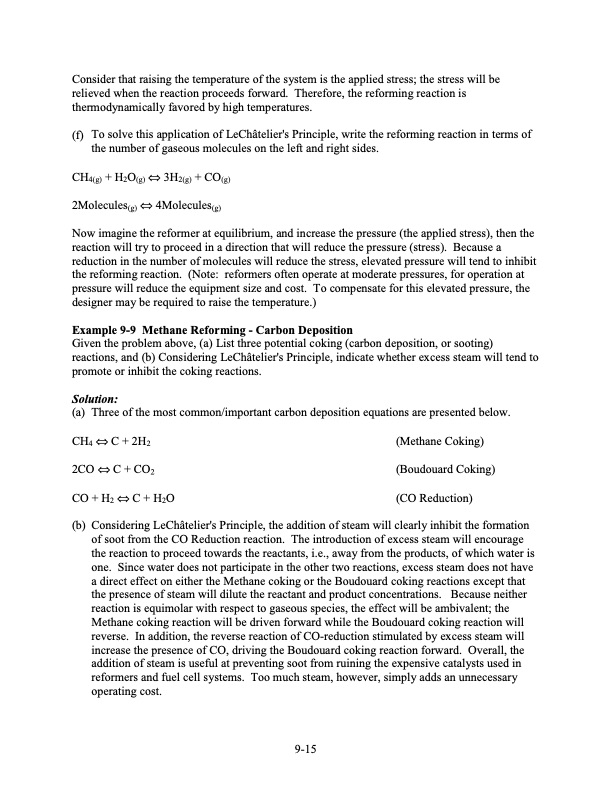

Consider that raising the temperature of the system is the applied stress; the stress will be relieved when the reaction proceeds forward. Therefore, the reforming reaction is thermodynamically favored by high temperatures. (f) To solve this application of LeChâtelier's Principle, write the reforming reaction in terms of the number of gaseous molecules on the left and right sides. CH4(g) + H2O(g) ⇔ 3H2(g) + CO(g) 2Molecules(g) ⇔ 4Molecules(g) Now imagine the reformer at equilibrium, and increase the pressure (the applied stress), then the reaction will try to proceed in a direction that will reduce the pressure (stress). Because a reduction in the number of molecules will reduce the stress, elevated pressure will tend to inhibit the reforming reaction. (Note: reformers often operate at moderate pressures, for operation at pressure will reduce the equipment size and cost. To compensate for this elevated pressure, the designer may be required to raise the temperature.) Example 9-9 Methane Reforming - Carbon Deposition Given the problem above, (a) List three potential coking (carbon deposition, or sooting) reactions, and (b) Considering LeChâtelier's Principle, indicate whether excess steam will tend to promote or inhibit the coking reactions. Solution: (a) Three of the most common/important carbon deposition equations are presented below. CH4 ⇔ C + 2H2 2CO ⇔ C + CO2 CO + H2 ⇔ C + H2O (Methane Coking) (Boudouard Coking) (CO Reduction) (b) Considering LeChâtelier's Principle, the addition of steam will clearly inhibit the formation of soot from the CO Reduction reaction. The introduction of excess steam will encourage the reaction to proceed towards the reactants, i.e., away from the products, of which water is one. Since water does not participate in the other two reactions, excess steam does not have a direct effect on either the Methane coking or the Boudouard coking reactions except that the presence of steam will dilute the reactant and product concentrations. Because neither reaction is equimolar with respect to gaseous species, the effect will be ambivalent; the Methane coking reaction will be driven forward while the Boudouard coking reaction will reverse. In addition, the reverse reaction of CO-reduction stimulated by excess steam will increase the presence of CO, driving the Boudouard coking reaction forward. Overall, the addition of steam is useful at preventing soot from ruining the expensive catalysts used in reformers and fuel cell systems. Too much steam, however, simply adds an unnecessary operating cost. 9-15PDF Image | Fuel Cell Handbook (Seventh Edition)
