PDF Publication Title:
Text from PDF Page: 400

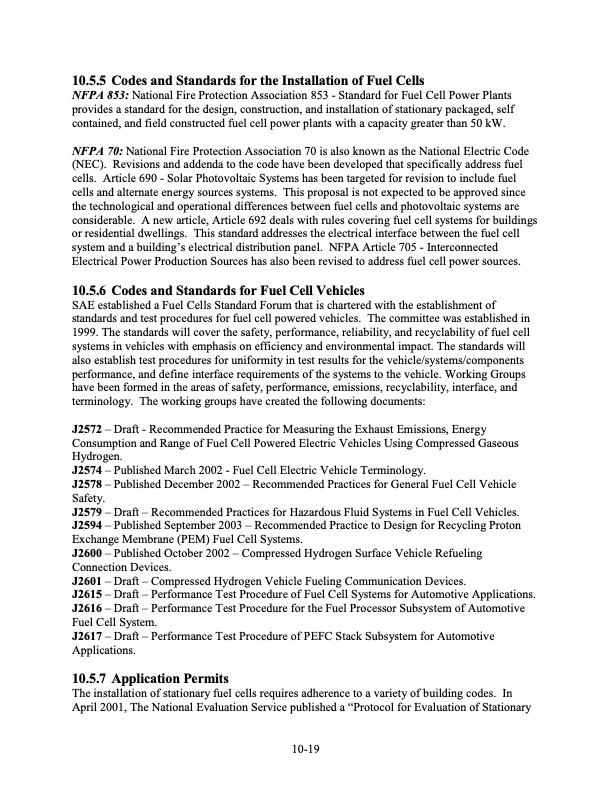

10.5.5 Codes and Standards for the Installation of Fuel Cells NFPA 853: National Fire Protection Association 853 - Standard for Fuel Cell Power Plants provides a standard for the design, construction, and installation of stationary packaged, self contained, and field constructed fuel cell power plants with a capacity greater than 50 kW. NFPA 70: National Fire Protection Association 70 is also known as the National Electric Code (NEC). Revisions and addenda to the code have been developed that specifically address fuel cells. Article 690 - Solar Photovoltaic Systems has been targeted for revision to include fuel cells and alternate energy sources systems. This proposal is not expected to be approved since the technological and operational differences between fuel cells and photovoltaic systems are considerable. A new article, Article 692 deals with rules covering fuel cell systems for buildings or residential dwellings. This standard addresses the electrical interface between the fuel cell system and a building’s electrical distribution panel. NFPA Article 705 - Interconnected Electrical Power Production Sources has also been revised to address fuel cell power sources. 10.5.6 Codes and Standards for Fuel Cell Vehicles SAE established a Fuel Cells Standard Forum that is chartered with the establishment of standards and test procedures for fuel cell powered vehicles. The committee was established in 1999. The standards will cover the safety, performance, reliability, and recyclability of fuel cell systems in vehicles with emphasis on efficiency and environmental impact. The standards will also establish test procedures for uniformity in test results for the vehicle/systems/components performance, and define interface requirements of the systems to the vehicle. Working Groups have been formed in the areas of safety, performance, emissions, recyclability, interface, and terminology. The working groups have created the following documents: J2572 – Draft - Recommended Practice for Measuring the Exhaust Emissions, Energy Consumption and Range of Fuel Cell Powered Electric Vehicles Using Compressed Gaseous Hydrogen. J2574 – Published March 2002 - Fuel Cell Electric Vehicle Terminology. J2578 – Published December 2002 – Recommended Practices for General Fuel Cell Vehicle Safety. J2579 – Draft – Recommended Practices for Hazardous Fluid Systems in Fuel Cell Vehicles. J2594 – Published September 2003 – Recommended Practice to Design for Recycling Proton Exchange Membrane (PEM) Fuel Cell Systems. J2600 – Published October 2002 – Compressed Hydrogen Surface Vehicle Refueling Connection Devices. J2601 – Draft – Compressed Hydrogen Vehicle Fueling Communication Devices. J2615 – Draft – Performance Test Procedure of Fuel Cell Systems for Automotive Applications. J2616 – Draft – Performance Test Procedure for the Fuel Processor Subsystem of Automotive Fuel Cell System. J2617 – Draft – Performance Test Procedure of PEFC Stack Subsystem for Automotive Applications. 10.5.7 Application Permits The installation of stationary fuel cells requires adherence to a variety of building codes. In April 2001, The National Evaluation Service published a “Protocol for Evaluation of Stationary 10-19PDF Image | Fuel Cell Handbook (Seventh Edition)
PDF Search Title:
Fuel Cell Handbook (Seventh Edition)Original File Name Searched:
fuel-cell-handbook.pdfDIY PDF Search: Google It | Yahoo | Bing
