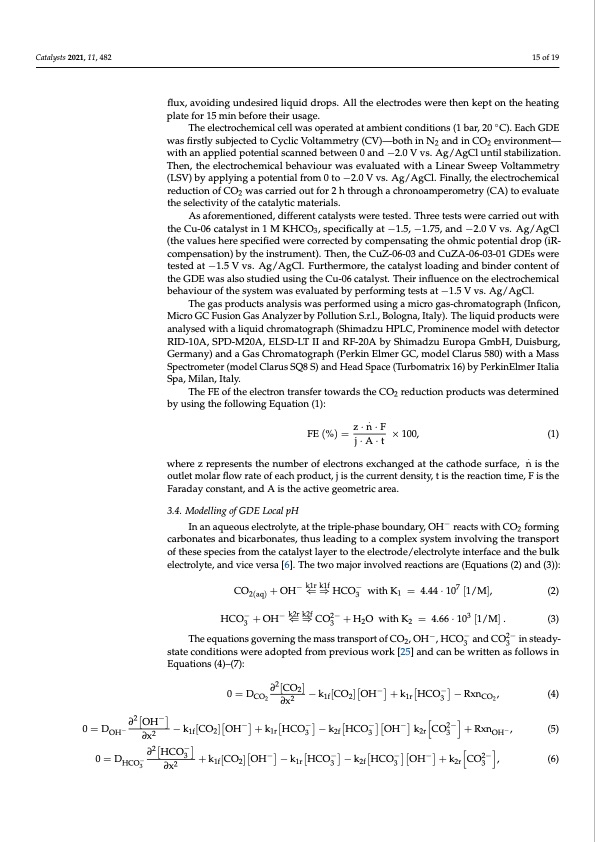

Text from PDF Page: 015
Catalysts 2021, 11, 482 15 of 19 flux, avoiding undesired liquid drops. All the electrodes were then kept on the heating plate for 15 min before their usage. The electrochemical cell was operated at ambient conditions (1 bar, 20 ◦C). Each GDE was firstly subjected to Cyclic Voltammetry (CV)—both in N2 and in CO2 environment— with an applied potential scanned between 0 and −2.0 V vs. Ag/AgCl until stabilization. Then, the electrochemical behaviour was evaluated with a Linear Sweep Voltammetry (LSV) by applying a potential from 0 to −2.0 V vs. Ag/AgCl. Finally, the electrochemical reduction of CO2 was carried out for 2 h through a chronoamperometry (CA) to evaluate the selectivity of the catalytic materials. As aforementioned, different catalysts were tested. Three tests were carried out with the Cu-06 catalyst in 1 M KHCO3, specifically at −1.5, −1.75, and −2.0 V vs. Ag/AgCl (the values here specified were corrected by compensating the ohmic potential drop (iR- compensation) by the instrument). Then, the CuZ-06-03 and CuZA-06-03-01 GDEs were tested at −1.5 V vs. Ag/AgCl. Furthermore, the catalyst loading and binder content of the GDE was also studied using the Cu-06 catalyst. Their influence on the electrochemical behaviour of the system was evaluated by performing tests at −1.5 V vs. Ag/AgCl. The gas products analysis was performed using a micro gas-chromatograph (Inficon, Micro GC Fusion Gas Analyzer by Pollution S.r.l., Bologna, Italy). The liquid products were analysed with a liquid chromatograph (Shimadzu HPLC, Prominence model with detector RID-10A, SPD-M20A, ELSD-LT II and RF-20A by Shimadzu Europa GmbH, Duisburg, Germany) and a Gas Chromatograph (Perkin Elmer GC, model Clarus 580) with a Mass Spectrometer (model Clarus SQ8 S) and Head Space (Turbomatrix 16) by PerkinElmer Italia Spa, Milan, Italy. The FE of the electron transfer towards the CO2 reduction products was determined by using the following Equation (1): FE(%)=z·n. ·F ×100, (1) j·A·t where z represents the number of electrons exchanged at the cathode surface, n. is the outlet molar flow rate of each product, j is the current density, t is the reaction time, F is the Faraday constant, and A is the active geometric area. 3.4. Modelling of GDE Local pH In an aqueous electrolyte, at the triple-phase boundary, OH− reacts with CO2 forming carbonates and bicarbonates, thus leading to a complex system involving the transport of these species from the catalyst layer to the electrode/electrolyte interface and the bulk electrolyte, and vice versa [6]. The two major involved reactions are (Equations (2) and (3)): − k1r k1f − 7 CO2(aq) + OH ⇐ ⇒ HCO3 with K1 = 4.44 · 10 [1/M], (2) − −k2rk2f 2− 3 HCO3 +OH ⇐⇒CO3 +H2O withK2 = 4.66·10 [1/M]. (3) The equations governing the mass transport of CO2, OH−, HCO− and CO2− in steady- 33 state conditions were adopted from previous work [25] and can be written as follows in Equations (4)–(7): 0 = D ∂2[CO2] −k [CO ]OH−+k HCO−−Rxn , (4) CO2 ∂x2 1f 2 1r 3 CO2 2 − ∂OH −−−− 2− − − − − 2− +k1f[CO2] OH −k1r HCO3 −k2f HCO3 OH +k2r CO3 , (6) 0=DOH− 0=DHCO− 2 3 ∂x 2 −k1f[CO2] OH +k1r HCO3 −k2f HCO3 OH k2r CO3 +RxnOH−, (5) ∂x 2 − ∂ HCO3PDF Image | Gas Diffusion Electrode Systems for the Electro CO2 Conversion
