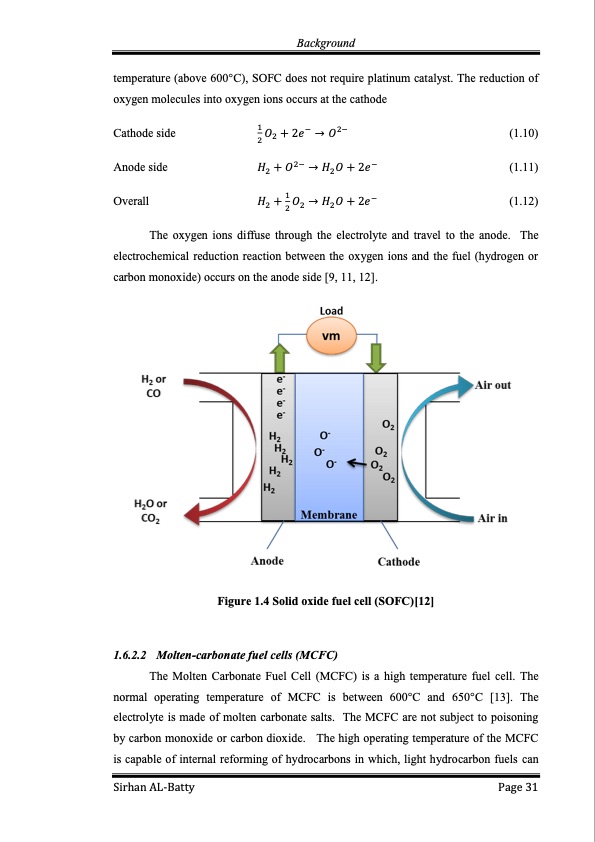

Background temperature (above 600°C), SOFC does not require platinum catalyst. The reduction of oxygen molecules into oxygen ions occurs at the cathode Cathode side Anode side Overall 12 𝑂2 + 2𝑒− → 𝑂2− 𝐻2 + 𝑂2− → 𝐻2𝑂 + 2𝑒− 𝐻2 + 12 𝑂2 → 𝐻2𝑂 + 2𝑒− (1.10) (1.11) (1.12) The oxygen ions diffuse through the electrolyte and travel to the anode. The electrochemical reduction reaction between the oxygen ions and the fuel (hydrogen or carbon monoxide) occurs on the anode side [9, 11, 12]. Figure 1.4 Solid oxide fuel cell (SOFC)[12] 1.6.2.2 Molten-carbonate fuel cells (MCFC) The Molten Carbonate Fuel Cell (MCFC) is a high temperature fuel cell. The normal operating temperature of MCFC is between 600°C and 650°C [13]. The electrolyte is made of molten carbonate salts. The MCFC are not subject to poisoning by carbon monoxide or carbon dioxide. The high operating temperature of the MCFC is capable of internal reforming of hydrocarbons in which, light hydrocarbon fuels can Sirhan AL-Batty Page 31PDF Image | Membrane Electrode Assembly Modification by Zeolite and Graphene Oxide
