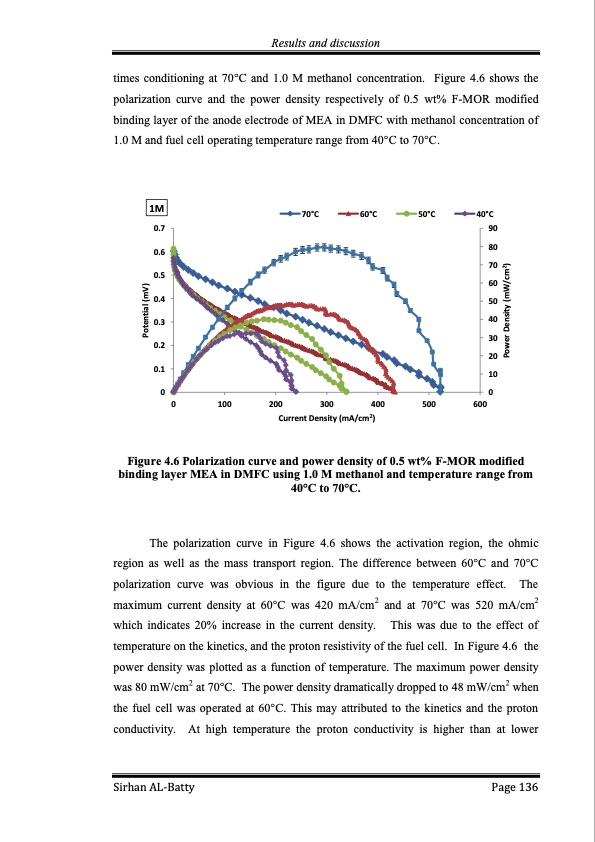

Results and discussion times conditioning at 70°C and 1.0 M methanol concentration. Figure 4.6 shows the polarization curve and the power density respectively of 0.5 wt% F-MOR modified binding layer of the anode electrode of MEA in DMFC with methanol concentration of 1.0 M and fuel cell operating temperature range from 40°C to 70°C. 1M 0.7 0.6 0.5 0.4 0.3 0.2 0.1 70°C 60°C 50°C 40°C 90 80 70 60 50 40 30 20 10 00 0 100 200 300 400 500 600 Current Density (mA/cm2) Figure 4.6 Polarization curve and power density of 0.5 wt% F-MOR modified binding layer MEA in DMFC using 1.0 M methanol and temperature range from 40°C to 70°C. The polarization curve in Figure 4.6 shows the activation region, the ohmic region as well as the mass transport region. The difference between 60°C and 70°C polarization curve was obvious in the figure due to the temperature effect. The maximum current density at 60°C was 420 mA/cm2 and at 70°C was 520 mA/cm2 which indicates 20% increase in the current density. This was due to the effect of temperature on the kinetics, and the proton resistivity of the fuel cell. In Figure 4.6 the power density was plotted as a function of temperature. The maximum power density was 80 mW/cm2 at 70°C. The power density dramatically dropped to 48 mW/cm2 when the fuel cell was operated at 60°C. This may attributed to the kinetics and the proton conductivity. At high temperature the proton conductivity is higher than at lower Sirhan AL-Batty Page 136 Potential (mV) Power Density (mW/cm2)PDF Image | Membrane Electrode Assembly Modification by Zeolite and Graphene Oxide
