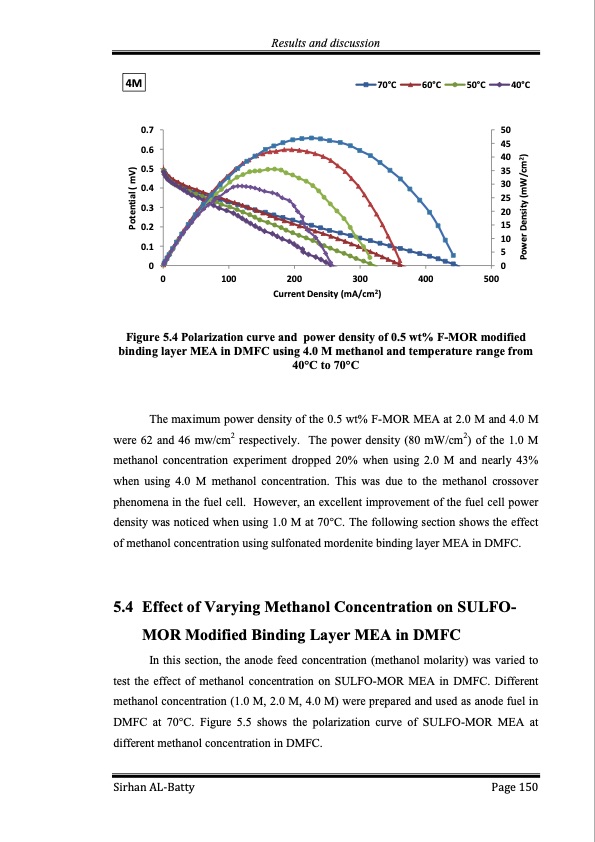

Results and discussion 4M 70°C 0.7 0.6 0.5 0.4 0.3 0.2 0.1 60°C 50°C 40°C 50 45 40 35 30 25 20 15 10 5 00 0 100 200 300 400 500 Current Density (mA/cm2) Figure 5.4 Polarization curve and power density of 0.5 wt% F-MOR modified binding layer MEA in DMFC using 4.0 M methanol and temperature range from 40°C to 70°C The maximum power density of the 0.5 wt% F-MOR MEA at 2.0 M and 4.0 M were 62 and 46 mw/cm2 respectively. The power density (80 mW/cm2) of the 1.0 M methanol concentration experiment dropped 20% when using 2.0 M and nearly 43% when using 4.0 M methanol concentration. This was due to the methanol crossover phenomena in the fuel cell. However, an excellent improvement of the fuel cell power density was noticed when using 1.0 M at 70°C. The following section shows the effect of methanol concentration using sulfonated mordenite binding layer MEA in DMFC. 5.4 Effect of Varying Methanol Concentration on SULFO- MOR Modified Binding Layer MEA in DMFC In this section, the anode feed concentration (methanol molarity) was varied to test the effect of methanol concentration on SULFO-MOR MEA in DMFC. Different methanol concentration (1.0 M, 2.0 M, 4.0 M) were prepared and used as anode fuel in DMFC at 70°C. Figure 5.5 shows the polarization curve of SULFO-MOR MEA at different methanol concentration in DMFC. Sirhan AL-Batty Page 150 Potential ( mV) Power Density (mW/cm2)PDF Image | Membrane Electrode Assembly Modification by Zeolite and Graphene Oxide
