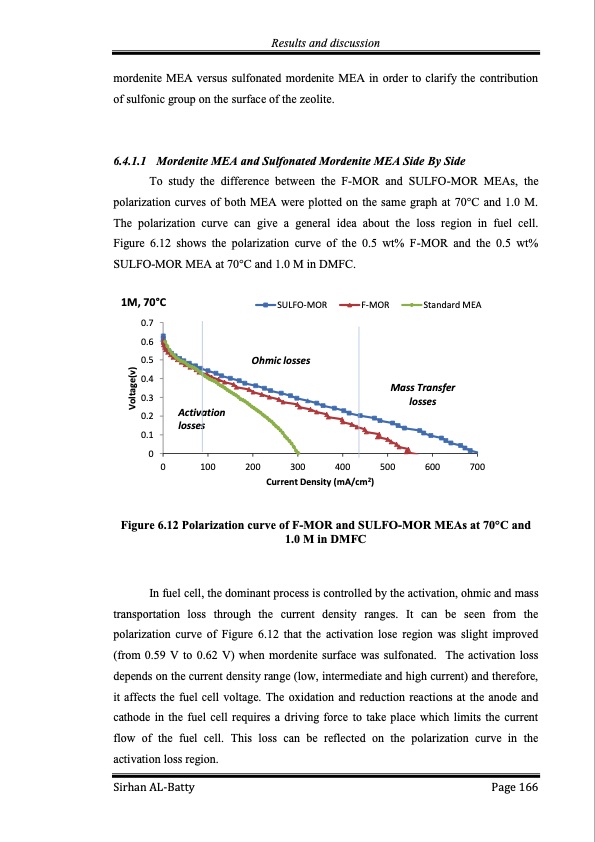

Results and discussion mordenite MEA versus sulfonated mordenite MEA in order to clarify the contribution of sulfonic group on the surface of the zeolite. 6.4.1.1 Mordenite MEA and Sulfonated Mordenite MEA Side By Side To study the difference between the F-MOR and SULFO-MOR MEAs, the polarization curves of both MEA were plotted on the same graph at 70°C and 1.0 M. The polarization curve can give a general idea about the loss region in fuel cell. Figure 6.12 shows the polarization curve of the 0.5 wt% F-MOR and the 0.5 wt% SULFO-MOR MEA at 70°C and 1.0 M in DMFC. 1M, 70°C 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 Activation losses SULFO-MOR Ohmic losses 200 300 F-MOR Standard MEA Mass Transfer losses 400 500 600 700 0 100 Current Density (mA/cm2) Figure 6.12 Polarization curve of F-MOR and SULFO-MOR MEAs at 70°C and 1.0 M in DMFC In fuel cell, the dominant process is controlled by the activation, ohmic and mass transportation loss through the current density ranges. It can be seen from the polarization curve of Figure 6.12 that the activation lose region was slight improved (from 0.59 V to 0.62 V) when mordenite surface was sulfonated. The activation loss depends on the current density range (low, intermediate and high current) and therefore, it affects the fuel cell voltage. The oxidation and reduction reactions at the anode and cathode in the fuel cell requires a driving force to take place which limits the current flow of the fuel cell. This loss can be reflected on the polarization curve in the activation loss region. Sirhan AL-Batty Page 166 Voltage(v)PDF Image | Membrane Electrode Assembly Modification by Zeolite and Graphene Oxide
