Text from PDF Page: 012

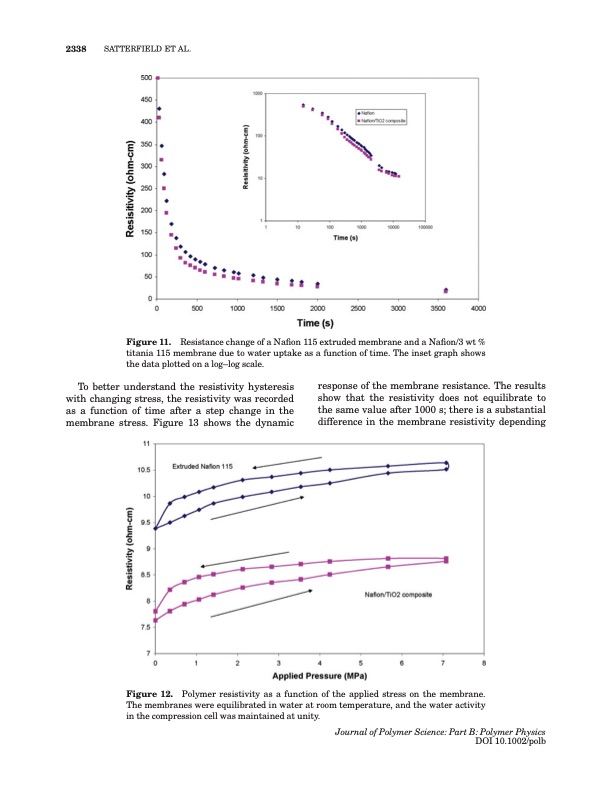

2338 SATTERFIELD ET AL. Figure 11. Resistance change of a Nafion 115 extruded membrane and a Nafion/3 wt % titania 115 membrane due to water uptake as a function of time. The inset graph shows the data plotted on a log–log scale. To better understand the resistivity hysteresis with changing stress, the resistivity was recorded as a function of time after a step change in the membrane stress. Figure 13 shows the dynamic response of the membrane resistance. The results show that the resistivity does not equilibrate to the same value after 1000 s; there is a substantial difference in the membrane resistivity depending Figure 12. Polymer resistivity as a function of the applied stress on the membrane. The membranes were equilibrated in water at room temperature, and the water activity in the compression cell was maintained at unity. Journal of Polymer Science: Part B: Polymer Physics DOI 10.1002/polbPDF Image | Properties of Nafion and Titania Nafion Composite Membranes
