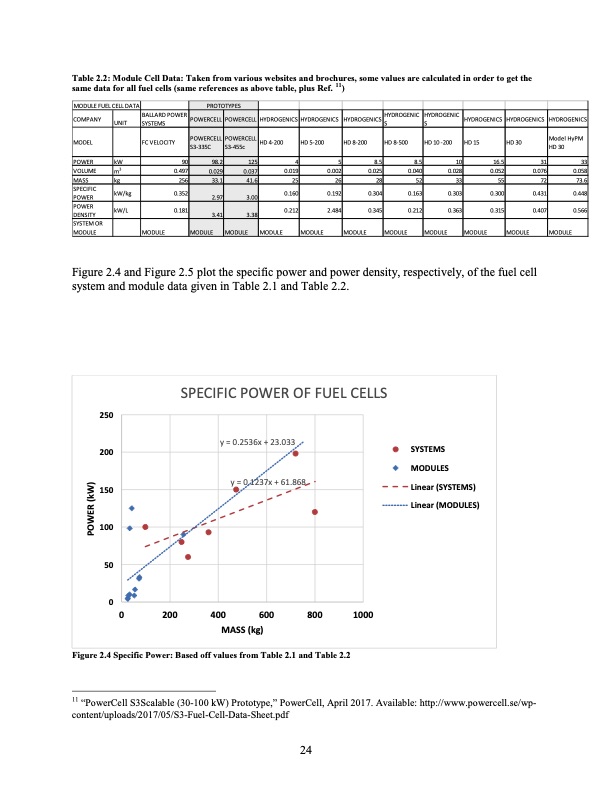

Table 2.2: Module Cell Data: Taken from various websites and brochures, some values are calculated in order to get the same data for all fuel cells (same references as above table, plus Ref. 11) MODULE FUEL CELL DATA PROTOTYPES COMPANY UNIT BALLARD POWER SYSTEMS POWERCELL POWERCELL HYDROGENICS HYDROGENICS HYDROGENICS HYDROGENIC S HYDROGENIC S HYDROGENICS HYDROGENICS HYDROGENICS MODEL kW m3 kg kW/kg kW/L FC VELOCITY POWERCELL S3-335C POWERCELL S3-455c HD 4-200 HD 5-200 HD 8-200 HD 8-500 HD10-200 HD 15 HD 30 Model HyPM HD 30 POWER 90 98.2 125 4 5 8.5 8.5 10 16.5 31 33 VOLUME 0.497 0.029 0.037 0.019 0.002 0.025 0.040 0.028 0.052 0.076 0.058 MASS 256 33.1 41.6 25 26 28 52 33 55 72 73.6 SPECIFIC POWER 0.352 2.97 3.00 0.160 0.192 0.304 0.163 0.303 0.300 0.431 0.448 POWER DENSITY 0.181 3.41 3.38 0.212 2.484 0.345 0.212 0.363 0.315 0.407 0.566 SYSTEM OR MODULE MODULE MODULE MODULE MODULE MODULE MODULE MODULE MODULE MODULE MODULE MODULE Figure 2.4 and Figure 2.5 plot the specific power and power density, respectively, of the fuel cell system and module data given in Table 2.1 and Table 2.2. 250 200 150 100 50 0 SYSTEMS MODULES Linear (SYSTEMS) Linear (MODULES) SPECIFIC POWER OF FUEL CELLS y = 0.2536x + 23.033 y = 0.1237x + 61.868 0 200 400 600 MASS (kg) 800 1000 Figure 2.4 Specific Power: Based off values from Table 2.1 and Table 2.2 11 “PowerCell S3Scalable (30-100 kW) Prototype,” PowerCell, April 2017. Available: http://www.powercell.se/wp- content/uploads/2017/05/S3-Fuel-Cell-Data-Sheet.pdf 24 POWER (kW)PDF Image | Regenerative Fuel Cell
