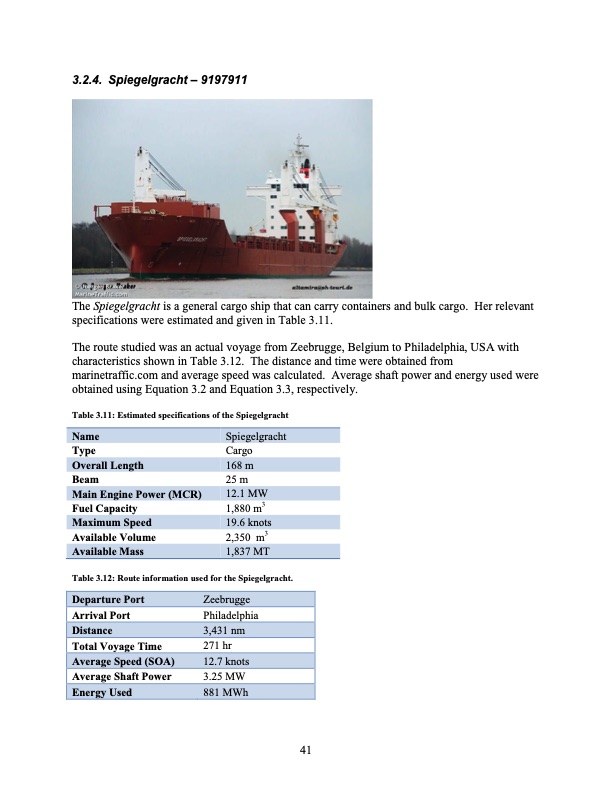

3.2.4. Spiegelgracht – 9197911 The Spiegelgracht is a general cargo ship that can carry containers and bulk cargo. Her relevant specifications were estimated and given in Table 3.11. The route studied was an actual voyage from Zeebrugge, Belgium to Philadelphia, USA with characteristics shown in Table 3.12. The distance and time were obtained from marinetraffic.com and average speed was calculated. Average shaft power and energy used were obtained using Equation 3.2 and Equation 3.3, respectively. Table 3.11: Estimated specifications of the Spiegelgracht Name Type Overall Length Beam Main Engine Power (MCR) Fuel Capacity Maximum Speed Available Volume Available Mass Spiegelgracht Cargo 168 m 25 m 12.1 MW 1,880 m3 19.6 knots 2,350 m3 1,837 MT Table 3.12: Route information used for the Spiegelgracht. Departure Port Arrival Port Distance Total Voyage Time Average Speed (SOA) Average Shaft Power Energy Used Zeebrugge Philadelphia 3,431 nm 271 hr 12.7 knots 3.25 MW 881 MWh 41PDF Image | Regenerative Fuel Cell
