PDF Publication Title:
Text from PDF Page: 007

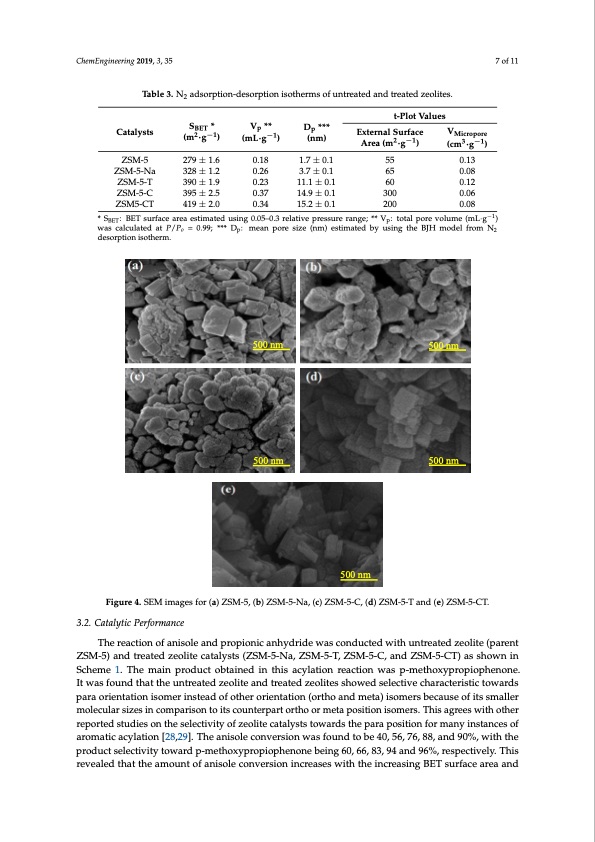

ChemEngineering 2019, 3, 35 7 of 11 Table 3. N2 adsorption-desorption isotherms of untreated and treated zeolites. ChemEngineering 2019, 3, x FOR PEER REVIEW Catalysts SBET * Vp ** t-Plot Values External Surface 7 of 11 The particle size and morphologies of treated and untreated zeolite catalysts were observed by Micropore Area (m2·g−1) SEM as shown in Figure 4. It can be observed from the SEM images that very tiny particle with unclear (m2 ·g−1 ) (mL·g−1 ) ZSM-5 279 ± 1.6 0.18 1.7 ± 0.1 55 0.13 Dp *** (nm) V (cm3·g−1) ZSM-5-Na 328 ± 1.2 0.26 3.7 ± 0.1 65 0.08 shapes, within a few nm size ranges, agglomerate with each other to form irregular clusters with ZSM-5-T 390 ± 1.9 0.23 11.1 ± 0.1 60 0.12 different morphologies. In order to observe the clear morphologies and confirm the mesoporosity of ZSM-5-C 395 ± 2.5 0.37 14.9 ± 0.1 300 0.06 the zeolite catalyst, a high‐resolution transmission electron microscopy analysis must be performed. ZSM5-CT 419 ± 2.0 0.34 15.2 ± 0.1 200 0.08 The results indicate that most of the crystals keep their shapes after treatments. However−,1some * SBET: BET surface area estimated using 0.05–0.3 relative pressure range; ** Vp: total pore volume (mL·g ) surfawceasrocaulcguhlantedssawt Pa/sPob=se0r.9v9e;d**i*nDtph:emSEeaMn pimoreagsiezse.(Tnhme)sestriemsauteltdsbmyautscihngwtehellBwJHithmtohdelrefrsoumltsNo2fthe desorption isotherm. literature [27]. 500 nm 500 nm 500 nm 500 nm 500 nm Figure 4. SEM images for (a) ZSM-5, (b) ZSM-5-Na, (c) ZSM-5-C, (d) ZSM-5-T and (e) ZSM-5-CT. Figure 4. SEM images for (a) ZSM‐5, (b) ZSM‐5‐Na, (c) ZSM‐5‐C, (d) ZSM‐5‐T and (e) ZSM‐5‐CT. 3.2. Catalytic Performance 3.2. Catalytic Performance The reaction of anisole and propionic anhydride was conducted with untreated zeolite (parent The reaction of anisole and propionic anhydride was conducted with untreated zeolite (parent ZSM-5) and treated zeolite catalysts (ZSM-5-Na, ZSM-5-T, ZSM-5-C, and ZSM-5-CT) as shown in ZSM‐5) and treated zeolite catalysts (ZSM‐5‐Na, ZSM‐5‐T, ZSM‐5‐C, and ZSM‐5‐CT) as shown in Scheme 1. The main product obtained in this acylation reaction was p-methoxypropiophenone. Scheme 1. The main product obtained in this acylation reaction was p‐methoxypropiophenone. It was It was found that the untreated zeolite and treated zeolites showed selective characteristic towards found that the untreated zeolite and treated zeolites showed selective characteristic towards para para orientation isomer instead of other orientation (ortho and meta) isomers because of its smaller orientation isomer instead of other orientation (ortho and meta) isomers because of its smaller molecular sizes in comparison to its counterpart ortho or meta position isomers. This agrees with other molecular sizes in comparison to its counterpart ortho or meta position isomers. This agrees with reported studies on the selectivity of zeolite catalysts towards the para position for many instances of other reported studies on the selectivity of zeolite catalysts towards the para position for many aromatic acylation [28,29]. The anisole conversion was found to be 40, 56, 76, 88, and 90%, with the instances of aromatic acylation [28,29]. The anisole conversion was found to be 40, 56, 76, 88, and 90%, product selectivity toward p-methoxypropiophenone being 60, 66, 83, 94 and 96%, respectively. This with the product selectivity toward p‐methoxypropiophenone being 60, 66, 83, 94 and 96%, revealed that the amount of anisole conversion increases with the increasing BET surface area and respectively. This revealed that the amount of anisole conversion increases with the increasing BET surface area and average pore size. In addition, the surface acidity of the zeolite catalysts may have an important role in anisole’s high conversion with more selectivity towards the product. Figure 5 shows two resulting peaks that correlated to the two different types of active acid sites. The high‐ temperature peak was attributed to the desorption of ammonia from strong Brønsted and Lewis acidic sites [30]. Furthermore, the low‐temperature peak was attributed to ammonia weakly held orPDF Image | Synthesis of Uniform Mesoporous Zeolite ZSM-5 Catalyst
PDF Search Title:
Synthesis of Uniform Mesoporous Zeolite ZSM-5 CatalystOriginal File Name Searched:
ChemEngineering-03-00035.pdfDIY PDF Search: Google It | Yahoo | Bing
NFT (Non Fungible Token): Buy our tech, design, development or system NFT and become part of our tech NFT network... More Info
IT XR Project Redstone NFT Available for Sale: NFT for high tech turbine design with one part 3D printed counter-rotating energy turbine. Be part of the future with this NFT. Can be bought and sold but only one design NFT exists. Royalties go to the developer (Infinity) to keep enhancing design and applications... More Info
Infinity Turbine IT XR Project Redstone Design: NFT for sale... NFT for high tech turbine design with one part 3D printed counter-rotating energy turbine. Includes all rights to this turbine design, including license for Fluid Handling Block I and II for the turbine assembly and housing. The NFT includes the blueprints (cad/cam), revenue streams, and all future development of the IT XR Project Redstone... More Info
Infinity Turbine ROT Radial Outflow Turbine 24 Design and Worldwide Rights: NFT for sale... NFT for the ROT 24 energy turbine. Be part of the future with this NFT. This design can be bought and sold but only one design NFT exists. You may manufacture the unit, or get the revenues from its sale from Infinity Turbine. Royalties go to the developer (Infinity) to keep enhancing design and applications... More Info
Infinity Supercritical CO2 10 Liter Extractor Design and Worldwide Rights: The Infinity Supercritical 10L CO2 extractor is for botanical oil extraction, which is rich in terpenes and can produce shelf ready full spectrum oil. With over 5 years of development, this industry leader mature extractor machine has been sold since 2015 and is part of many profitable businesses. The process can also be used for electrowinning, e-waste recycling, and lithium battery recycling, gold mining electronic wastes, precious metals. CO2 can also be used in a reverse fuel cell with nafion to make a gas-to-liquids fuel, such as methanol, ethanol and butanol or ethylene. Supercritical CO2 has also been used for treating nafion to make it more effective catalyst. This NFT is for the purchase of worldwide rights which includes the design. More Info
NFT (Non Fungible Token): Buy our tech, design, development or system NFT and become part of our tech NFT network... More Info
Infinity Turbine Products: Special for this month, any plans are $10,000 for complete Cad/Cam blueprints. License is for one build. Try before you buy a production license. May pay by Bitcoin or other Crypto. Products Page... More Info
| CONTACT TEL: 608-238-6001 Email: greg@infinityturbine.com | RSS | AMP |
