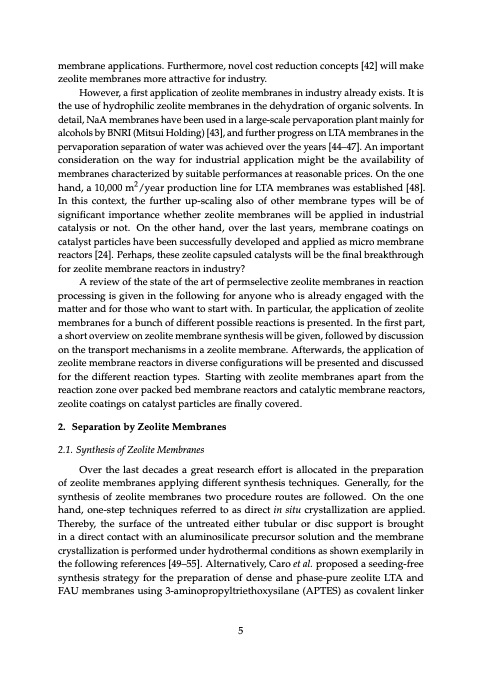

membrane applications. Furthermore, novel cost reduction concepts [42] will make zeolite membranes more attractive for industry. However, a first application of zeolite membranes in industry already exists. It is the use of hydrophilic zeolite membranes in the dehydration of organic solvents. In detail, NaA membranes have been used in a large-scale pervaporation plant mainly for alcohols by BNRI (Mitsui Holding) [43], and further progress on LTA membranes in the pervaporation separation of water was achieved over the years [44–47]. An important consideration on the way for industrial application might be the availability of membranes characterized by suitable performances at reasonable prices. On the one hand, a 10,000 m2/year production line for LTA membranes was established [48]. In this context, the further up-scaling also of other membrane types will be of significant importance whether zeolite membranes will be applied in industrial catalysis or not. On the other hand, over the last years, membrane coatings on catalyst particles have been successfully developed and applied as micro membrane reactors [24]. Perhaps, these zeolite capsuled catalysts will be the final breakthrough for zeolite membrane reactors in industry? A review of the state of the art of permselective zeolite membranes in reaction processing is given in the following for anyone who is already engaged with the matter and for those who want to start with. In particular, the application of zeolite membranes for a bunch of different possible reactions is presented. In the first part, a short overview on zeolite membrane synthesis will be given, followed by discussion on the transport mechanisms in a zeolite membrane. Afterwards, the application of zeolite membrane reactors in diverse configurations will be presented and discussed for the different reaction types. Starting with zeolite membranes apart from the reaction zone over packed bed membrane reactors and catalytic membrane reactors, zeolite coatings on catalyst particles are finally covered. 2. SeparationbyZeoliteMembranes 2.1. Synthesis of Zeolite Membranes Over the last decades a great research effort is allocated in the preparation of zeolite membranes applying different synthesis techniques. Generally, for the synthesis of zeolite membranes two procedure routes are followed. On the one hand, one-step techniques referred to as direct in situ crystallization are applied. Thereby, the surface of the untreated either tubular or disc support is brought in a direct contact with an aluminosilicate precursor solution and the membrane crystallization is performed under hydrothermal conditions as shown exemplarily in the following references [49–55]. Alternatively, Caro et al. proposed a seeding-free synthesis strategy for the preparation of dense and phase-pure zeolite LTA and FAU membranes using 3-aminopropyltriethoxysilane (APTES) as covalent linker 5PDF Image | Zeolite Catalysis
