PDF Publication Title:
Text from PDF Page: 007

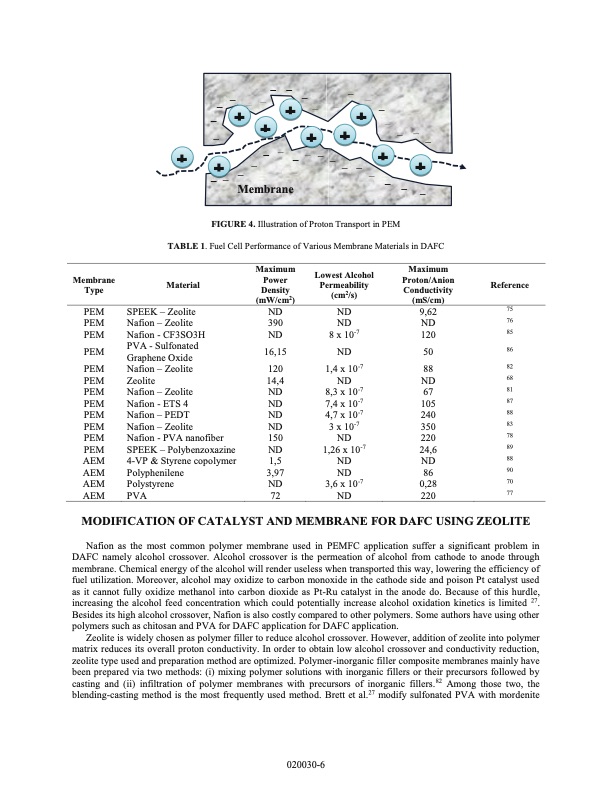

-------- ---- -+++ ++--- --+- + + --- -------+ + - - Membrane - - - Membrane Type Material Maximum Lowest Alcohol Maximum Power Permeability Proton/Anion Density (cm2/s) Conductivity (mW/cm2) (mS/cm) Reference 75 76 86 PEM SPEEK – Zeolite PEM Nafion – Zeolite PEM Nafion - CF3SO3H PEM PV A - Sulfonated Graphene Oxide PEM Nafion – Zeolite ND ND 9,62 390 ND ND ND 8 x 10-7 120 85 FIGURE 4. Illustration of Proton Transport in PEM TABLE 1. Fuel Cell Performance of Various Membrane Materials in DAFC PEM Zeolite 14,4 ND ND 68 16,15 ND 50 120 1,4 x 10-7 88 82 PEM Nafion – Zeolite ND PEM Nafion - ETS 4 ND PEM Nafion – PEDT ND PEM Nafion – Zeolite ND PEM Nafion - PV A nanofiber 150 PEM SPEEK – Polybenzoxazine ND AEM 4-VP & Styrene copolymer 1,5 AEM Polyphenilene 3,97 ND 86 AEM Polystyrene ND 3,6 x 10-7 0,28 70 AEM PVA 72 ND 220 8,3 x 10-7 67 81 7,4 x 10-7 105 87 4,7 x 10-7 240 88 3 x 10-7 350 83 78 1,26 x 10-7 24,6 89 ND 220 ND ND 88 90 77 MODIFICATION OF CATALYST AND MEMBRANE FOR DAFC USING ZEOLITE Nafion as the most common polymer membrane used in PEMFC application suffer a significant problem in DAFC namely alcohol crossover. Alcohol crossover is the permeation of alcohol from cathode to anode through membrane. Chemical energy of the alcohol will render useless when transported this way, lowering the efficiency of fuel utilization. Moreover, alcohol may oxidize to carbon monoxide in the cathode side and poison Pt catalyst used as it cannot fully oxidize methanol into carbon dioxide as Pt-Ru catalyst in the anode do. Because of this hurdle, increasing the alcohol feed concentration which could potentially increase alcohol oxidation kinetics is limited 27. Besides its high alcohol crossover, Nafion is also costly compared to other polymers. Some authors have using other polymers such as chitosan and PVA for DAFC application for DAFC application. Zeolite is widely chosen as polymer filler to reduce alcohol crossover. However, addition of zeolite into polymer matrix reduces its overall proton conductivity. In order to obtain low alcohol crossover and conductivity reduction, zeolite type used and preparation method are optimized. Polymer-inorganic filler composite membranes mainly have been prepared via two methods: (i) mixing polymer solutions with inorganic fillers or their precursors followed by casting and (ii) infiltration of polymer membranes with precursors of inorganic fillers.82 Among those two, the blending-casting method is the most frequently used method. Brett et al.27 modify sulfonated PVA with mordenite 020030-6PDF Image | Zeolite modification for direct alcohol fuel cells DAFCs
PDF Search Title:
Zeolite modification for direct alcohol fuel cells DAFCsOriginal File Name Searched:
zeolite-modification-dafc.pdfDIY PDF Search: Google It | Yahoo | Bing
