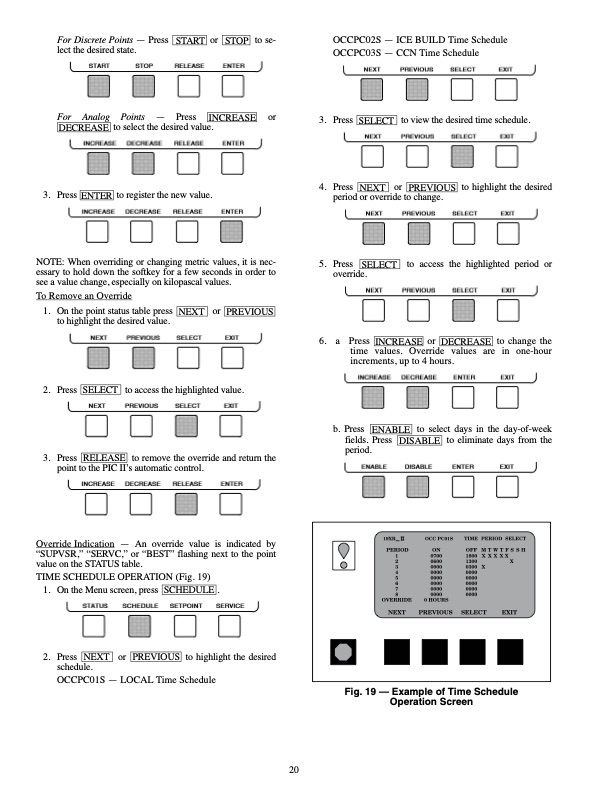

For Discrete Points — Press START or STOP to se- lect the desired state. For Analog Points — Press INCREASE or DECREASE to select the desired value. 3. Press ENTER to register the new value. NOTE: When overriding or changing metric values, it is nec- essary to hold down the softkey for a few seconds in order to see a value change, especially on kilopascal values. 3. 4. 5. OCCPC02S — ICE BUILD Time Schedule OCCPC03S — CCN Time Schedule Press SELECT to view the desired time schedule. Press NEXT or PREVIOUS to highlight the desired period or override to change. Press SELECT to access the highlighted period or override. To Remove an Override 1. On the point status table press to highlight the desired value. NEXT or PREVIOUS 2. Press SELECT to access the highlighted value. 6. a Press INCREASE or DECREASE to change the time values. Override values are in one-hour increments, up to 4 hours. b. Press ENABLE to select days in the day-of-week fields. Press DISABLE to eliminate days from the period. 3. Press point to the PIC II’s automatic control. Override Indication — An override value is indicated by “SUPVSR,” “SERVC,” or “BEST” flashing next to the point value on the STATUS table. TIME SCHEDULE OPERATION (Fig. 19) 1. On the Menu screen, press SCHEDULE . 2. Press NEXT or PREVIOUS to highlight the desired schedule. OCCPC01S — LOCAL Time Schedule RELEASE to remove the override and return the 20 Fig. 19 — Example of Time Schedule Operation ScreenPDF Image | 19XR,XRV Hermetic Centrifugal Liquid Chillers 50/60 Hz With PIC II Controls and HFC-134a
