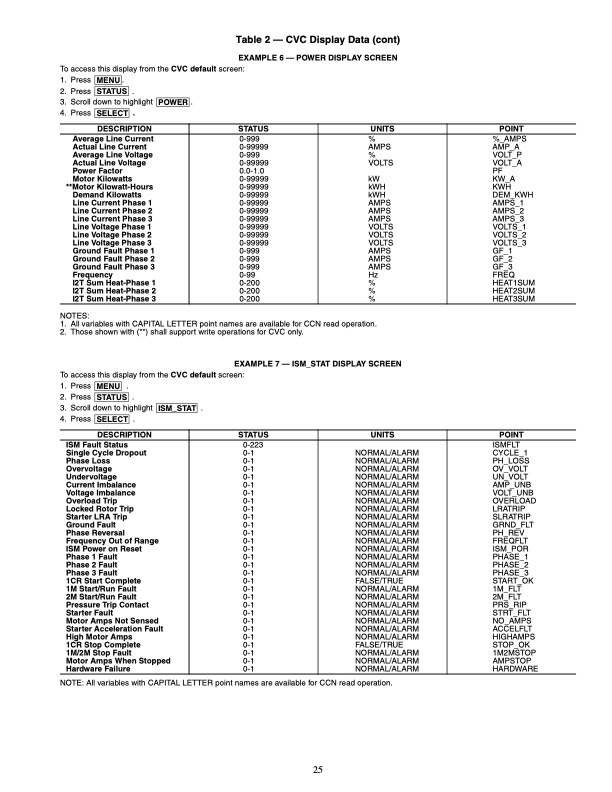

EXAMPLE 6 — POWER DISPLAY SCREEN To access this display from the CVC default screen: 1. Press MENU . 2. Press STATUS . 3. Scroll down to highlight POWER . 4. Press SELECT . DESCRIPTION Average Line Current Actual Line Current Average Line Voltage Actual Line Voltage Power Factor Motor Kilowatts **Motor Kilowatt-Hours Demand Kilowatts Line Current Phase 1 Line Current Phase 2 Line Current Phase 3 Line Voltage Phase 1 Line Voltage Phase 2 Line Voltage Phase 3 Ground Fault Phase 1 Ground Fault Phase 2 Ground Fault Phase 3 Frequency I2T Sum Heat-Phase 1 I2T Sum Heat-Phase 2 I2T Sum Heat-Phase 3 NOTES: 1. All variables with CAPITAL LETTER point names are available for CCN read operation. 2. Those shown with (**) shall support write operations for CVC only. EXAMPLE 7 — ISM_STAT DISPLAY SCREEN To access this display from the CVC default screen: 1. Press MENU . 2. Press STATUS . 3. Scroll down to highlight ISM_STAT . 4. Press SELECT . DESCRIPTION ISM Fault Status Single Cycle Dropout Phase Loss Overvoltage Undervoltage Current Imbalance Voltage Imbalance Overload Trip Locked Rotor Trip Starter LRA Trip Ground Fault Phase Reversal Frequency Out of Range ISM Power on Reset Phase 1 Fault Phase 2 Fault Phase 3 Fault 1CR Start Complete 1M Start/Run Fault 2M Start/Run Fault Pressure Trip Contact Starter Fault Motor Amps Not Sensed Starter Acceleration Fault High Motor Amps 1CR Stop Complete 1M/2M Stop Fault Motor Amps When Stopped Hardware Failure NOTE: All variables with CAPITAL LETTER point names are available for CCN read operation. POINT %_AMPS AMP_A VOLT_P VOLT_A PF KW_A KWH DEM_KWH AMPS_1 AMPS_2 AMPS_3 VOLTS_1 VOLTS_2 VOLTS_3 GF_1 GF_2 GF_3 FREQ HEAT1SUM HEAT2SUM HEAT3SUM Table 2 — CVC Display Data (cont) STATUS UNITS 0-999 0-99999 0-999 0-99999 0.0-1.0 0-99999 0-99999 0-99999 0-99999 0-99999 0-99999 0-99999 0-99999 0-99999 0-999 0-999 0-999 0-99 0-200 0-200 0-200 % AMPS % VOLTS kW kWH kWH AMPS AMPS AMPS VOLTS VOLTS VOLTS AMPS AMPS AMPS Hz % % % STATUS UNITS 0-223 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 0-1 NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM FALSE/TRUE NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM FALSE/TRUE NORMAL/ALARM NORMAL/ALARM NORMAL/ALARM POINT ISMFLT CYCLE_1 PH_LOSS OV_VOLT UN_VOLT AMP_UNB VOLT_UNB OVERLOAD LRATRIP SLRATRIP GRND_FLT PH_REV FREQFLT ISM_POR PHASE_1 PHASE_2 PHASE_3 START_OK 1M_FLT 2M_FLT PRS_RIP STRT_FLT NO_AMPS ACCELFLT HIGHAMPS STOP_OK 1M2MSTOP AMPSTOP HARDWARE 25PDF Image | 19XR,XRV Hermetic Centrifugal Liquid Chillers 50/60 Hz With PIC II Controls and HFC-134a
