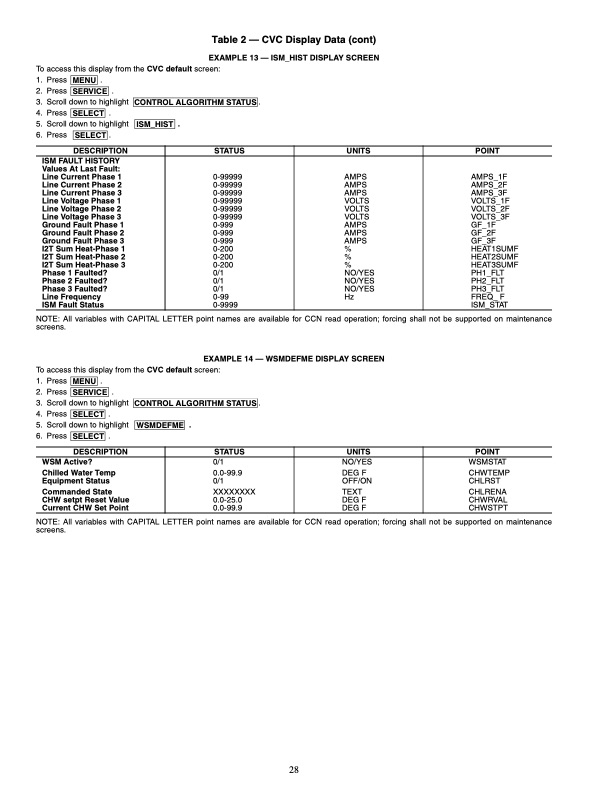

Text from PDF Page: 028
EXAMPLE 13 — ISM_HIST DISPLAY SCREEN To access this display from the CVC default screen: 1. Press 2. Press 3. Scroll 4. Press 5. Scroll 6. Press MENU . SERVICE . down to highlight CONTROL ALGORITHM STATUS . Table 2 — CVC Display Data (cont) SELECT . down to highlight SELECT . ISM_HIST . STATUS UNITS 0-99999 0-99999 0-99999 0-99999 0-99999 0-99999 0-999 0-999 0-999 0-200 0-200 0-200 0/1 0/1 0/1 0-99 0-9999 AMPS AMPS AMPS VOLTS VOLTS VOLTS AMPS AMPS AMPS % % % NO/YES NO/YES NO/YES Hz DESCRIPTION ISM FAULT HISTORY Values At Last Fault: Line Current Phase 1 Line Current Phase 2 Line Current Phase 3 Line Voltage Phase 1 Line Voltage Phase 2 Line Voltage Phase 3 Ground Fault Phase 1 Ground Fault Phase 2 Ground Fault Phase 3 I2T Sum Heat-Phase 1 I2T Sum Heat-Phase 2 I2T Sum Heat-Phase 3 Phase 1 Faulted? Phase 2 Faulted? Phase 3 Faulted? Line Frequency ISM Fault Status POINT AMPS_1F AMPS_2F AMPS_3F VOLTS_1F VOLTS_2F VOLTS_3F GF_1F GF_2F GF_3F HEAT1SUMF HEAT2SUMF HEAT3SUMF PH1_FLT PH2_FLT PH3_FLT FREQ_ F ISM_STAT NOTE: All variables with CAPITAL LETTER point names are available for CCN read operation; forcing shall not be supported on maintenance screens. EXAMPLE 14 — WSMDEFME DISPLAY SCREEN To access this display from the CVC default screen: 1. Press MENU . 2. Press SERVICE . 3. Scroll down to highlight CONTROL ALGORITHM STATUS . 4. Press SELECT . 5. Scroll down to highlight 6. Press SELECT . DESCRIPTION WSM Active? Chilled Water Temp Equipment Status Commanded State CHW setpt Reset Value Current CHW Set Point WSMDEFME . STATUS UNITS 0/1 0.0-99.9 0/1 XXXXXXXX 0.0-25.0 0.0-99.9 NO/YES DEG F OFF/ON TEXT DEG F DEG F POINT WSMSTAT CHWTEMP CHLRST CHLRENA CHWRVAL CHWSTPT NOTE: All variables with CAPITAL LETTER point names are available for CCN read operation; forcing shall not be supported on maintenance screens. 28PDF Image | 19XR,XRV Hermetic Centrifugal Liquid Chillers 50/60 Hz With PIC II Controls and HFC-134a
