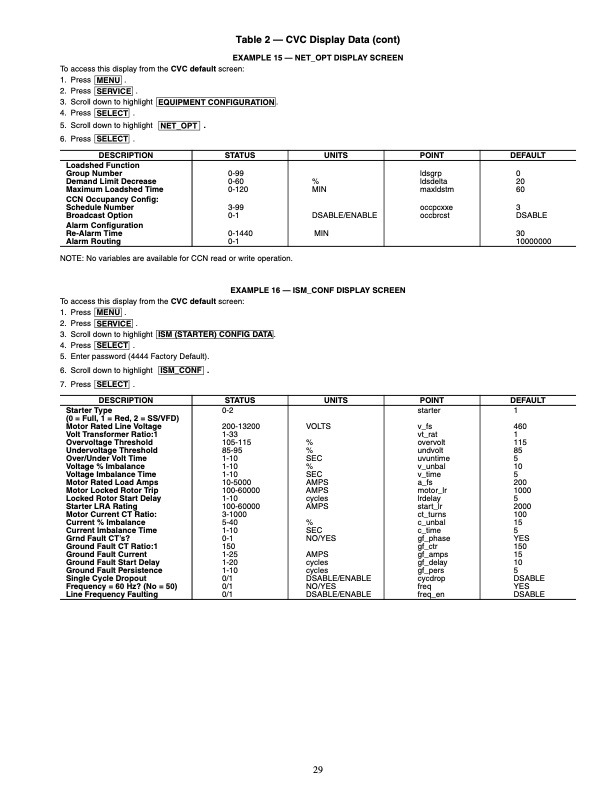

EXAMPLE 15 — NET_OPT DISPLAY SCREEN To access this display from the CVC default screen: 1. Press MENU . 2. Press SERVICE . 3. Scroll down to highlight EQUIPMENT CONFIGURATION . 4. Press SELECT . 5. Scroll down to highlight 6. Press SELECT . DESCRIPTION Loadshed Function Group Number Demand Limit Decrease Maximum Loadshed Time CCN Occupancy Config: Schedule Number Broadcast Option Alarm Configuration Re-Alarm Time Alarm Routing Table 2 — CVC Display Data (cont) NET_OPT . STATUS UNITS POINT 0-99 0-60 0-120 3-99 0-1 0-1440 0-1 % MIN DSABLE/ENABLE MIN ldsgrp ldsdelta maxldstm occpcxxe occbrcst DEFAULT 0 20 60 3 DSABLE 30 10000000 NOTE: No variables are available for CCN read or write operation. EXAMPLE 16 — ISM_CONF DISPLAY SCREEN To access this display from the CVC default screen: 1. Press MENU . 2. Press SERVICE . 3. Scroll down to highlight ISM (STARTER) CONFIG DATA . 4. Press SELECT . 5. Enter password (4444 Factory Default). 6. Scroll down to highlight ISM_CONF . 7. Press SELECT . DESCRIPTION Starter Type (0 = Full, 1 = Red, 2 = SS/VFD) Motor Rated Line Voltage Volt Transformer Ratio:1 Overvoltage Threshold Undervoltage Threshold Over/Under Volt Time Voltage % Imbalance Voltage Imbalance Time Motor Rated Load Amps Motor Locked Rotor Trip Locked Rotor Start Delay Starter LRA Rating Motor Current CT Ratio: Current % Imbalance Current Imbalance Time Grnd Fault CT’s? Ground Fault CT Ratio:1 Ground Fault Current Ground Fault Start Delay Ground Fault Persistence Single Cycle Dropout Frequency = 60 Hz? (No = 50) Line Frequency Faulting DEFAULT 1 460 1 115 85 5 10 5 200 1000 5 2000 100 15 5 YES 150 15 10 5 DSABLE YES DSABLE STATUS UNITS POINT 0-2 200-13200 1-33 105-115 85-95 1-10 1-10 1-10 10-5000 100-60000 1-10 100-60000 3-1000 5-40 1-10 0-1 150 1-25 1-20 1-10 0/1 0/1 0/1 VOLTS % % SEC % SEC AMPS AMPS cycles AMPS % SEC NO/YES AMPS cycles cycles DSABLE/ENABLE NO/YES DSABLE/ENABLE starter v_fs vt_rat overvolt undvolt uvuntime v_unbal v_time a_fs motor_lr lrdelay start_lr ct_turns c_unbal c_time gf_phase gf_ctr gf_amps gf_delay gf_pers cycdrop freq freq_en 29PDF Image | 19XR,XRV Hermetic Centrifugal Liquid Chillers 50/60 Hz With PIC II Controls and HFC-134a
PDF Search Title:
