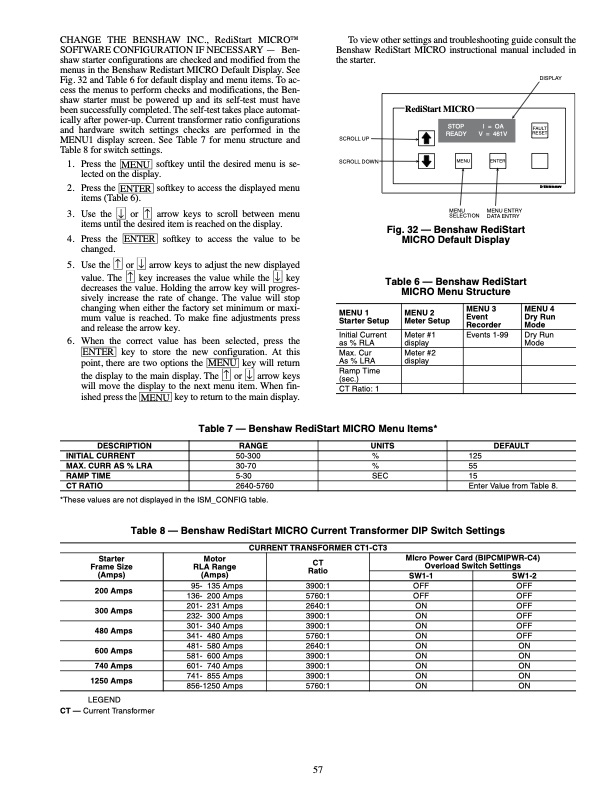

CHANGE THE BENSHAW INC., RediStart MICROTM SOFTWARE CONFIGURATION IF NECESSARY — Ben- shaw starter configurations are checked and modified from the menus in the Benshaw Redistart MICRO Default Display. See Fig. 32 and Table 6 for default display and menu items. To ac- cess the menus to perform checks and modifications, the Ben- shaw starter must be powered up and its self-test must have been successfully completed. The self-test takes place automat- ically after power-up. Current transformer ratio configurations and hardware switch settings checks are performed in the MENU1 display screen. See Table 7 for menu structure and Table 8 for switch settings. 1. Press the MENU softkey until the desired menu is se- lected on the display. 2. Press the ENTER softkey to access the displayed menu items (Table 6). 3. Use the ↓ or ↑ arrow keys to scroll between menu items until the desired item is reached on the display. 4. Press the ENTER softkey to access the value to be changed. 5. Use the ↑ or ↓ arrow keys to adjust the new displayed value. The ↑ key increases the value while the ↓ key decreases the value. Holding the arrow key will progres- sively increase the rate of change. The value will stop changing when either the factory set minimum or maxi- mum value is reached. To make fine adjustments press and release the arrow key. 6. When the correct value has been selected, press the ENTER key to store the new configuration. At this point, there are two options the MENU key will return the display to the main display. The ↑ or ↓ arrow keys will move the display to the next menu item. When fin- ished press the MENU key to return to the main display. To view other settings and troubleshooting guide consult the Benshaw RediStart MICRO instructional manual included in the starter. DISPLAY STOP I = OA READY V = 461V FAULT RESET MENU ENTER SCROLL UP SCROLL DOWN RediStart MICRO MENU MENU ENTRY SELECTION DATA ENTRY Fig. 32 — Benshaw RediStart MICRO Default Display Table 6 — Benshaw RediStart MICRO Menu Structure MENU 2 Meter Setup MENU 3 Event Recorder Meter #1 display Events 1-99 Meter #2 display MENU 1 Starter Setup Initial Current as % RLA Max. Cur As % LRA Ramp Time (sec.) CT Ratio: 1 MENU 4 Dry Run Mode Dry Run Mode DEFAULT 125 55 15 Enter Value from Table 8. Table 7 — Benshaw RediStart MICRO Menu Items* RANGE UNITS 50-300 % 30-70 % 5-30 SEC 2640-5760 DESCRIPTION INITIAL CURRENT MAX. CURR AS % LRA RAMP TIME CT RATIO *These values are not displayed in the ISM_CONFIG table. Table 8 — Benshaw RediStart MICRO Current Transformer DIP Switch Settings CURRENT TRANSFORMER CT1-CT3 Motor RLA Range (Amps) 95- 135 Amps 136- 200 Amps 201- 231 Amps 232- 300 Amps 301- 340 Amps 341- 480 Amps 481- 580 Amps 581- 600 Amps 601- 740 Amps 741- 855 Amps 856-1250 Amps CT Ratio 3900:1 5760:1 2640:1 3900:1 3900:1 5760:1 2640:1 3900:1 3900:1 3900:1 5760:1 SW1-1 OFF OFF ON ON ON ON ON ON ON ON ON Starter Frame Size (Amps) 200 Amps 300 Amps 480 Amps 600 Amps 740 Amps 1250 Amps LEGEND CT — Current Transformer MIcro Power Card (BIPCMIPWR-C4) Overload Switch Settings SW1-2 OFF OFF OFF OFF OFF OFF ON ON ON ON ON 57PDF Image | 19XR,XRV Hermetic Centrifugal Liquid Chillers 50/60 Hz With PIC II Controls and HFC-134a
