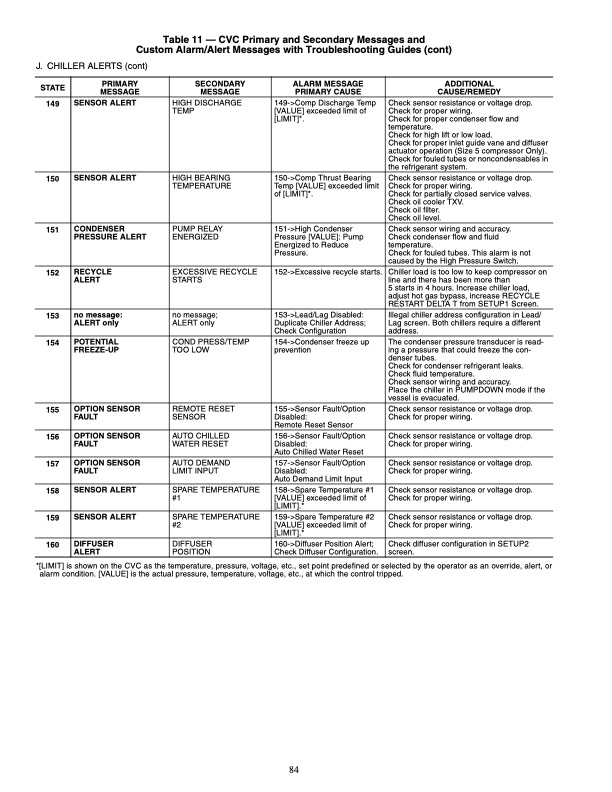

J. CHILLER ALERTS (cont) STATE ADDITIONAL CAUSE/REMEDY Table 11 — CVC Primary and Secondary Messages and Custom Alarm/Alert Messages with Troubleshooting Guides (cont) PRIMARY MESSAGE SECONDARY MESSAGE ALARM MESSAGE PRIMARY CAUSE SENSOR ALERT HIGH DISCHARGE TEMP 149->Comp Discharge Temp [VALUE] exceeded limit of [LIMIT]*. SENSOR ALERT HIGH BEARING TEMPERATURE 150->Comp Thrust Bearing Temp [VALUE] exceeded limit of [LIMIT]*. CONDENSER PRESSURE ALERT PUMP RELAY ENERGIZED 151->High Condenser Pressure [VALUE]: Pump Energized to Reduce Pressure. RECYCLE ALERT EXCESSIVE RECYCLE STARTS 152->Excessive recycle starts. no message: ALERT only no message; ALERT only 153->Lead/Lag Disabled: Duplicate Chiller Address; Check Configuration POTENTIAL FREEZE-UP COND PRESS/TEMP TOO LOW 154->Condenser freeze up prevention OPTION SENSOR FAULT REMOTE RESET SENSOR 155->Sensor Fault/Option Disabled: Remote Reset Sensor OPTION SENSOR FAULT AUTO CHILLED WATER RESET 156->Sensor Fault/Option Disabled: Auto Chilled Water Reset OPTION SENSOR FAULT AUTO DEMAND LIMIT INPUT 157->Sensor Fault/Option Disabled: Auto Demand Limit Input SENSOR ALERT SPARE TEMPERATURE #1 158->Spare Temperature #1 [VALUE] exceeded limit of [LIMIT].* SENSOR ALERT SPARE TEMPERATURE #2 159->Spare Temperature #2 [VALUE] exceeded limit of [LIMIT].* DIFFUSER ALERT DIFFUSER POSITION 160->Diffuser Position Alert; Check Diffuser Configuration. 149 Check sensor resistance or voltage drop. Check for proper wiring. Check for proper condenser flow and temperature. Check for high lift or low load. Check for proper inlet guide vane and diffuser actuator operation (Size 5 compressor Only). Check for fouled tubes or noncondensables in the refrigerant system. 150 Check sensor resistance or voltage drop. Check for proper wiring. Check for partially closed service valves. Check oil cooler TXV. Check oil filter. Check oil level. 151 Check sensor wiring and accuracy. Check condenser flow and fluid temperature. Check for fouled tubes. This alarm is not caused by the High Pressure Switch. 152 Chiller load is too low to keep compressor on line and there has been more than 5 starts in 4 hours. Increase chiller load, adjust hot gas bypass, increase RECYCLE RESTART DELTA T from SETUP1 Screen. 153 Illegal chiller address configuration in Lead/ Lag screen. Both chillers require a different address. 154 The condenser pressure transducer is read- ing a pressure that could freeze the con- denser tubes. Check for condenser refrigerant leaks. Check fluid temperature. Check sensor wiring and accuracy. Place the chiller in PUMPDOWN mode if the vessel is evacuated. 155 Check sensor resistance or voltage drop. Check for proper wiring. 156 Check sensor resistance or voltage drop. Check for proper wiring. 157 Check sensor resistance or voltage drop. Check for proper wiring. 158 Check sensor resistance or voltage drop. Check for proper wiring. 159 Check sensor resistance or voltage drop. Check for proper wiring. 160 Check diffuser configuration in SETUP2 screen. *[LIMIT] is shown on the CVC as the temperature, pressure, voltage, etc., set point predefined or selected by the operator as an override, alert, or alarm condition. [VALUE] is the actual pressure, temperature, voltage, etc., at which the control tripped. 84PDF Image | 19XR,XRV Hermetic Centrifugal Liquid Chillers 50/60 Hz With PIC II Controls and HFC-134a
