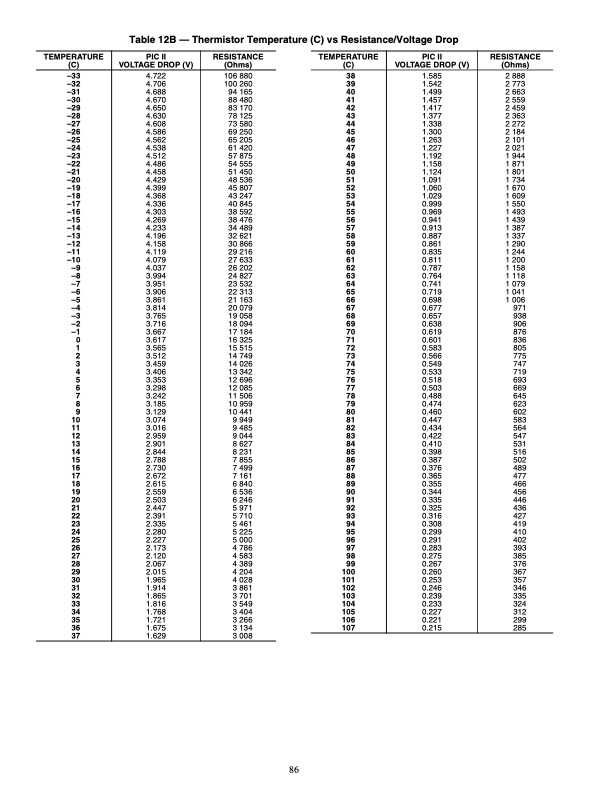

Table 12B — Thermistor Temperature (C) vs Resistance/Voltage Drop PIC II VOLTAGE DROP (V) 4.722 4.706 4.688 4.670 4.650 4.630 4.608 4.586 4.562 4.538 4.512 4.486 4.458 4.429 4.399 4.368 4.336 4.303 4.269 4.233 4.196 4.158 4.119 4.079 4.037 3.994 3.951 3.906 3.861 3.814 3.765 3.716 3.667 3.617 3.565 3.512 3.459 3.406 3.353 3.298 3.242 3.185 3.129 3.074 3.016 2.959 2.901 2.844 2.788 2.730 2.672 2.615 2.559 2.503 2.447 2.391 2.335 2.280 2.227 2.173 2.120 2.067 2.015 1.965 1.914 1.865 1.816 1.768 1.721 1.675 1.629 PIC II VOLTAGE DROP (V) 1.585 1.542 1.499 1.457 1.417 1.377 1.338 1.300 1.263 1.227 1.192 1.158 1.124 1.091 1.060 1.029 0.999 0.969 0.941 0.913 0.887 0.861 0.835 0.811 0.787 0.764 0.741 0.719 0.698 0.677 0.657 0.638 0.619 0.601 0.583 0.566 0.549 0.533 0.518 0.503 0.488 0.474 0.460 0.447 0.434 0.422 0.410 0.398 0.387 0.376 0.365 0.355 0.344 0.335 0.325 0.316 0.308 0.299 0.291 0.283 0.275 0.267 0.260 0.253 0.246 0.239 0.233 0.227 0.221 0.215 TEMPERATURE (C) (Ohms) –33 106 880 –32 100 260 –31 94 165 –30 88 480 –29 83 170 –28 78 125 –27 73 580 –26 69 250 –25 65 205 –24 61 420 –23 57 875 –22 54 555 –21 51 450 –20 48 536 –19 45 807 –18 43 247 –17 40 845 –16 38 592 –15 38 476 –14 34 489 –13 32 621 –12 30 866 –11 29 216 –10 27 633 –9 26 202 –8 24 827 –7 23 532 –6 22 313 –5 21 163 –4 20 079 –3 19 058 –2 18 094 –1 17 184 0 16 325 1 15 515 2 14 749 3 14 026 4 13 342 5 12 696 6 12 085 7 11 506 8 10 959 9 10 441 10 9 949 11 9 485 12 9 044 13 8 627 14 8 231 15 7 855 16 7 499 17 7 161 18 6 840 19 6 536 20 6 246 21 5 971 22 5 710 23 5 461 24 5 225 25 5 000 26 4 786 27 4 583 28 4 389 29 4 204 30 4 028 31 3 861 32 3 701 33 3 549 34 3 404 35 3 266 36 3 134 37 3 008 TEMPERATURE (C) (Ohms) 38 2 888 39 2 773 40 2 663 41 2 559 42 2 459 43 2 363 44 2 272 45 2 184 46 2 101 47 2 021 48 1 944 49 1 871 50 1 801 51 1 734 52 1 670 53 1 609 54 1 550 55 1 493 56 1 439 57 1 387 58 1 337 59 1 290 60 1 244 61 1 200 62 1 158 63 1118 64 1 079 65 1 041 66 1 006 67 971 68 938 69 906 70 876 71 836 72 805 73 775 74 747 75 719 76 693 77 669 78 645 79 623 80 602 81 583 82 564 83 547 84 531 85 516 86 502 87 489 88 477 89 466 90 456 91 446 92 436 93 427 94 419 95 410 96 402 97 393 98 385 99 376 100 367 101 357 102 346 103 335 104 324 105 312 106 299 107 285 RESISTANCE RESISTANCE 86PDF Image | 19XR,XRV Hermetic Centrifugal Liquid Chillers 50/60 Hz With PIC II Controls and HFC-134a
