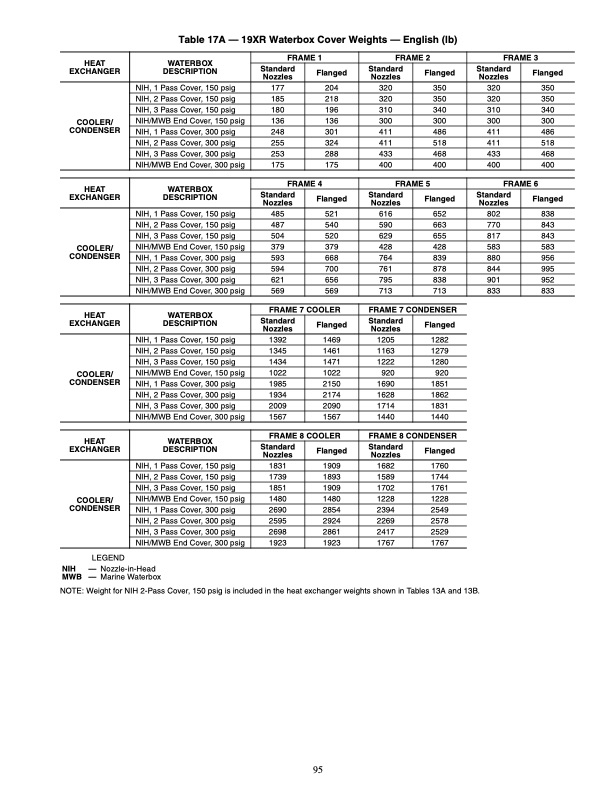

Table 17A — 19XR Waterbox Cover Weights — English (lb) WATERBOX DESCRIPTION NIH, 1 Pass Cover, 150 psig NIH, 2 Pass Cover, 150 psig NIH, 3 Pass Cover, 150 psig NIH/MWB End Cover, 150 psig NIH, 1 Pass Cover, 300 psig NIH, 2 Pass Cover, 300 psig NIH, 3 Pass Cover, 300 psig NIH/MWB End Cover, 300 psig Standard Nozzles 177 185 180 136 248 255 253 175 FRAME 1 Flanged 204 218 196 136 301 324 288 175 Standard Nozzles 320 320 310 300 411 411 433 400 FRAME 2 Flanged 350 350 340 300 486 518 468 400 Standard Nozzles 320 320 310 300 411 411 433 400 HEAT EXCHANGER COOLER/ CONDENSER HEAT EXCHANGER COOLER/ CONDENSER HEAT EXCHANGER COOLER/ CONDENSER HEAT EXCHANGER COOLER/ CONDENSER LEGEND NIH — Nozzle-in-Head FRAME 3 Flanged 350 350 340 300 486 518 468 400 FRAME 6 Flanged 838 843 843 583 956 995 952 833 WATERBOX DESCRIPTION NIH, 1 Pass Cover, 150 psig NIH, 2 Pass Cover, 150 psig NIH, 3 Pass Cover, 150 psig NIH/MWB End Cover, 150 psig NIH, 1 Pass Cover, 300 psig NIH, 2 Pass Cover, 300 psig NIH, 3 Pass Cover, 300 psig NIH/MWB End Cover, 300 psig Standard Nozzles 485 487 504 379 593 594 621 569 FRAME 4 Flanged 521 540 520 379 668 700 656 569 Standard Nozzles 616 590 629 428 764 761 795 713 FRAME 5 Flanged 652 663 655 428 839 878 838 713 Standard Nozzles 802 770 817 583 880 844 901 833 WATERBOX DESCRIPTION NIH, 1 Pass Cover, 150 psig NIH, 2 Pass Cover, 150 psig NIH, 3 Pass Cover, 150 psig NIH/MWB End Cover, 150 psig NIH, 1 Pass Cover, 300 psig NIH, 2 Pass Cover, 300 psig NIH, 3 Pass Cover, 300 psig NIH/MWB End Cover, 300 psig FRAME 7 COOLER Standard Nozzles 1392 1345 1434 1022 1985 1934 2009 1567 Flanged 1469 1461 1471 1022 2150 2174 2090 1567 Standard Nozzles 1205 1163 1222 920 1690 1628 1714 1440 FRAME 7 CONDENSER Flanged 1282 1279 1280 920 1851 1862 1831 1440 FRAME 8 CONDENSER Flanged 1760 1744 1761 1228 2549 2578 2529 1767 WATERBOX DESCRIPTION NIH, 1 Pass Cover, 150 psig NIH, 2 Pass Cover, 150 psig NIH, 3 Pass Cover, 150 psig NIH/MWB End Cover, 150 psig NIH, 1 Pass Cover, 300 psig NIH, 2 Pass Cover, 300 psig NIH, 3 Pass Cover, 300 psig NIH/MWB End Cover, 300 psig FRAME 8 COOLER Standard Nozzles 1831 1739 1851 1480 2690 2595 2698 1923 Flanged 1909 1893 1909 1480 2854 2924 2861 1923 Standard Nozzles 1682 1589 1702 1228 2394 2269 2417 1767 MWB — Marine Waterbox NOTE: Weight for NIH 2-Pass Cover, 150 psig is included in the heat exchanger weights shown in Tables 13A and 13B. 95PDF Image | 19XR,XRV Hermetic Centrifugal Liquid Chillers 50/60 Hz With PIC II Controls and HFC-134a
PDF Search Title:
19XR,XRV Hermetic Centrifugal Liquid Chillers 50/60 Hz With PIC II Controls and HFC-134aOriginal File Name Searched:
19xr_4ss_Startup_PICII.pdfDIY PDF Search: Google It | Yahoo | Bing
