PDF Publication Title:
Text from PDF Page: 107

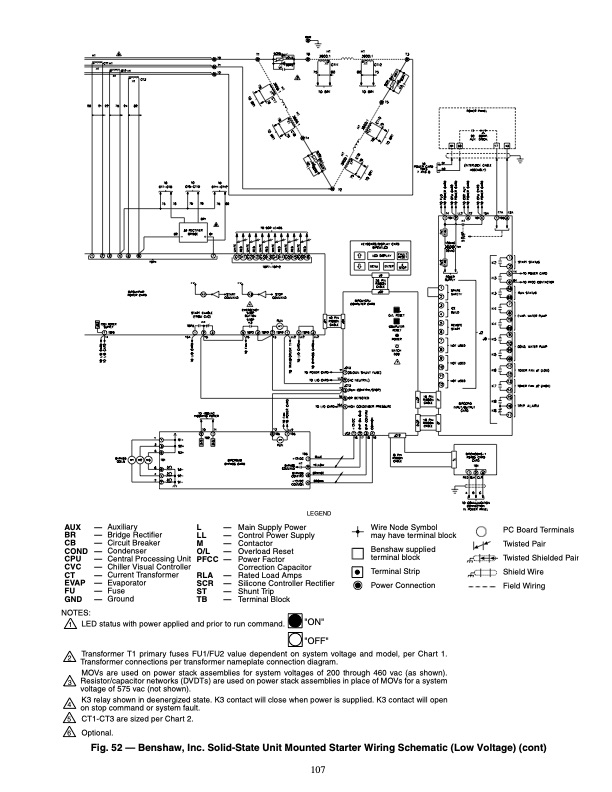

AUX — BR — CB — COND — CPU — CVC — CT — EVAP — FU — GND — NOTES: Auxiliary Bridge Rectifier Circuit Breaker Condenser Central Processing Unit Chiller Visual Controller Current Transformer Evaporator Fuse Ground L — LL — M — O/L — PFCC — RLA — SCR — ST — TB — LEGEND Main Supply Power Control Power Supply Contactor Overload Reset Power Factor Correction Capacitor Rated Load Amps Silicone Controller Rectifier Shunt Trip Wire Node Symbol may have terminal block Benshaw supplied terminal block Terminal Strip Power Connection PC Board Terminals Twisted Pair Twisted Shielded Pair Shield Wire Field Wiring 1 2 3 4 5 6 LED status with power applied and prior to run command. "ON" "OFF" Terminal Block Transformer T1 primary fuses FU1/FU2 value dependent on system voltage and model, per Chart 1. Transformer connections per transformer nameplate connection diagram. MOVs are used on power stack assemblies for system voltages of 200 through 460 vac (as shown). Resistor/capacitor networks (DVDTs) are used on power stack assemblies in place of MOVs for a system voltage of 575 vac (not shown). K3 relay shown in deenergized state. K3 contact will close when power is supplied. K3 contact will open on stop command or system fault. CT1-CT3 are sized per Chart 2. Optional. Fig. 52 — Benshaw, Inc. Solid-State Unit Mounted Starter Wiring Schematic (Low Voltage) (cont) 107PDF Image | 19XR,XRV Hermetic Centrifugal Liquid Chillers 50/60 Hz With PIC II Controls and HFC-134a
PDF Search Title:
19XR,XRV Hermetic Centrifugal Liquid Chillers 50/60 Hz With PIC II Controls and HFC-134aOriginal File Name Searched:
19xr_4ss_Startup_PICII.pdfDIY PDF Search: Google It | Yahoo | Bing
