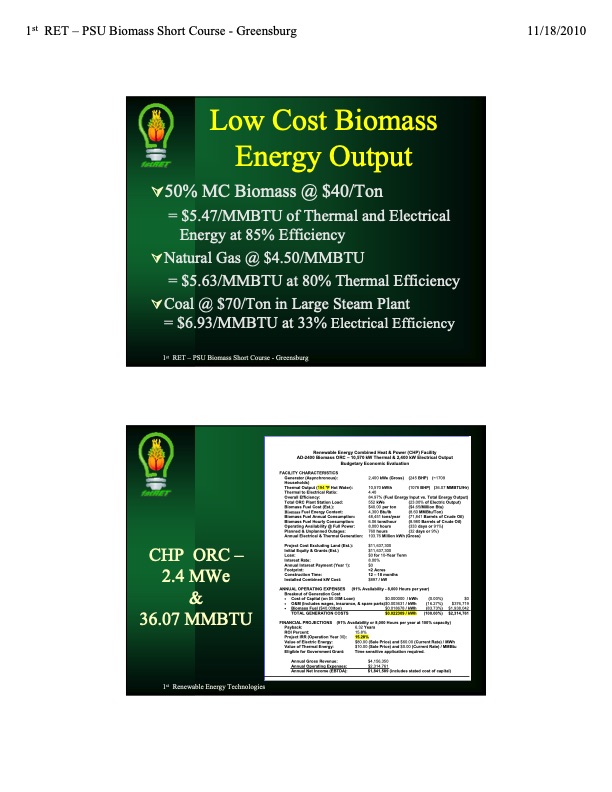

1st RET – PSU Biomass Short Course - Greensburg 11/18/2010 Low Cost Biomass Energy Output 50% MC Biomass @ $40/Ton = $5.47/MMBTU of Thermal and Electrical Energy at 85% Efficiency Natural Gas @ $4.50/MMBTU = $5.63/MMBTU at 80% Thermal Efficiency Coal @ $70/Ton in Large Steam Plant = $6.93/MMBTU at 33% Electrical Efficiency 1st RET – PSU Biomass Short Course - Greensburg Renewable Energy Combined Heat & Power (CHP) Facility AD-2400 Biomass ORC – 10,570 kW Thermal & 2,400 kW Electrical Output Budgetary Economic Evaluation FACILITY CHARACTERISTICS Generator (Asynchronous): Households) Thermal Output (194 °F Hot Water): Thermal to Electrical Ratio: Overall Efficiency: Total ORC Plant Station Load: Biomass Fuel Cost (Est.): Biomass Fuel Energy Content: Biomass Fuel Annual Consumption: Biomass Fuel Hourly Consumption: Operating Availability @ Full Power: Planned & Unplanned Outages: Annual Electrical & Thermal Generation: Project Cost Excluding Land (Est.): Initial Equity & Grants (Est.) Loan: Interest Rate: Annual Interest Payment (Year 1): Footprint: Construction Time: Installed Combined kW Cost: ANNUAL OPERATING EXPENSES Breakout of Generation Cost • Cost of Capital (on $0.00M Loan) $0.000000 / kWh • O&M (Includes wages, insurance, & spare parts)$0.003631 / kWh • Biomass Fuel ($40.00/ton) $0.018678 / kWh TOTAL GENERATION COSTS $0.022309 / kWh 2,400 kWe (Gross) (245 BHP) (~1709 (36.07 MMBTU/Hr) 10,570 kWth (1078 BHP) 4.40 84.97% (Fuel Energy Input vs. Total Energy Output) CHP ORC – 2.4 MWe & 36.07 MMBTU 1st Renewable Energy Technologies (91% Availability - 8,000 Hours per year) 552 kWe $40.00 per ton 4,300 Btu/lb 48,451 tons/year 6.06 tons/hour 8,000 hours 760 hours 103.76 Million kWh (Gross) $11,637,300 $11,637,300 $0 for 10-Year Term 8.00% $0 <2 Acres 12 – 18 months $897 / kW (23.00% of Electric Output) ($4.65/Million Btu) (8.60 MMBtu/Ton) (71,841 Barrels of Crude Oil) (8.980 Barrels of Crude Oil) (333 days or 91%) (32 days or 9%) (0.00%) (16.27%) (83.73%) (100.00%) $0 $376,719 $1,938,042 $2,314,761 FINANCIAL PROJECTIONS Payback: (91% Availability or 8,000 Hours per year at 100% capacity) 6.32 Years ROI Percent: Project IRR (Operation Year 30): Value of Electric Energy: Value of Thermal Energy: Eligible for Government Grant: Annual Gross Revenue: Annual Operating Expenses: Annual Net Income (EBTDA): 15.8% 15.28% $80.00 (Sale Price) and $60.00 (Current Rate) / MWh $10.00 (Sale Price) and $0.00 (Current Rate) / MMBtu Time sensitive application required. $4,156,350 $2,314,761 $1,841,589 (includes stated cost of capital)PDF Image | 1st Renewable Energy
