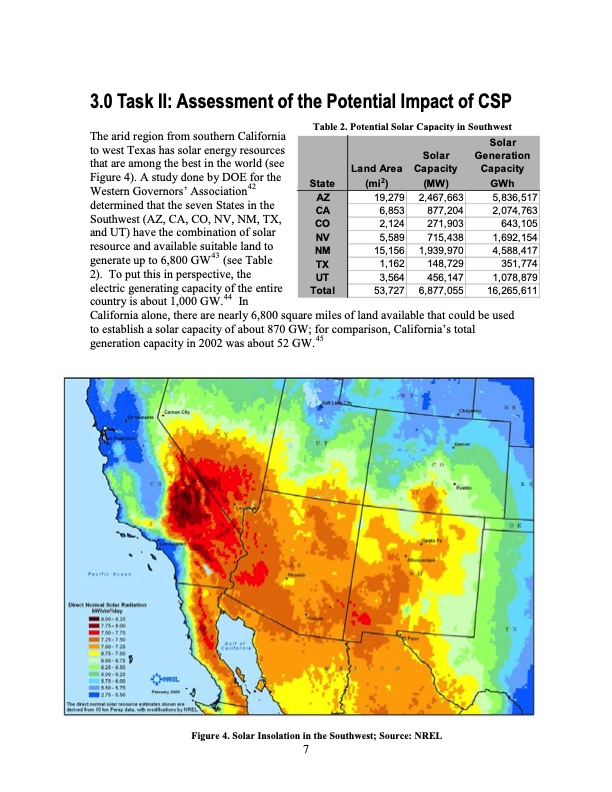

3.0 Task II: Assessment of the Potential Impact of CSP The arid region from southern California to west Texas has solar energy resources that are among the best in the world (see Figure 4). A study done by DOE for the Western Governors’ Association42 determined that the seven States in the Southwest (AZ, CA, CO, NV, NM, TX, and UT) have the combination of solar resource and available suitable land to generate up to 6,800 GW43 (see Table 2). To put this in perspective, the electric generating capacity of the entire country is about 1,000 GW.44 In California alone, there are nearly 6,800 square miles of land available that could be used to establish a solar capacity of about 870 GW; for comparison, California’s total generation capacity in 2002 was about 52 GW.45 Table 2. Potential Solar Capacity in Southwest State Solar Land Area Capacity (mi2) (MW) Solar Generation Capacity GWh AZ CA CO NV NM TX UT Total 19,279 6,853 2,124 5,589 15,156 1,162 3,564 53,727 2,467,663 877,204 271,903 715,438 1,939,970 148,729 456,147 6,877,055 5,836,517 2,074,763 643,105 1,692,154 4,588,417 351,774 1,078,879 16,265,611 Figure 4. Solar Insolation in the Southwest; Source: NREL 7PDF Image | 2007 Concentrating Solar Power USA DOE
