PDF Publication Title:
Text from PDF Page: 024

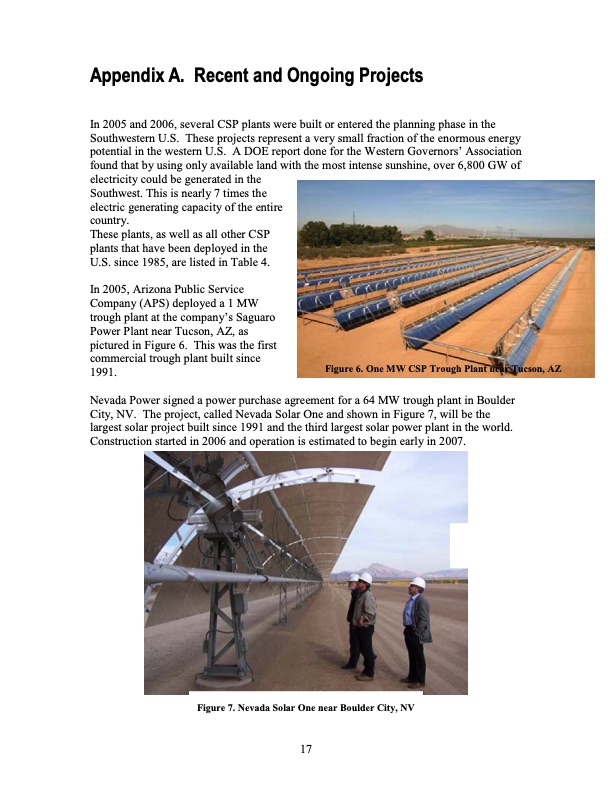

Appendix A. Recent and Ongoing Projects In 2005 and 2006, several CSP plants were built or entered the planning phase in the Southwestern U.S. These projects represent a very small fraction of the enormous energy potential in the western U.S. A DOE report done for the Western Governors’ Association found that by using only available land with the most intense sunshine, over 6,800 GW of electricity could be generated in the Southwest. This is nearly 7 times the electric generating capacity of the entire country. These plants, as well as all other CSP plants that have been deployed in the U.S. since 1985, are listed in Table 4. In 2005, Arizona Public Service Company (APS) deployed a 1 MW trough plant at the company’s Saguaro Power Plant near Tucson, AZ, as pictured in Figure 6. This was the first commercial trough plant built since 1991. Figure 6. One MW CSP Trough Plant near Tucson, AZ Nevada Power signed a power purchase agreement for a 64 MW trough plant in Boulder City, NV. The project, called Nevada Solar One and shown in Figure 7, will be the largest solar project built since 1991 and the third largest solar power plant in the world. Construction started in 2006 and operation is estimated to begin early in 2007. Figure 7. Nevada Solar One near Boulder City, NV 17PDF Image | 2007 Concentrating Solar Power USA DOE
PDF Search Title:
2007 Concentrating Solar Power USA DOEOriginal File Name Searched:
41233.pdfDIY PDF Search: Google It | Yahoo | Bing
