PDF Publication Title:
Text from PDF Page: 009

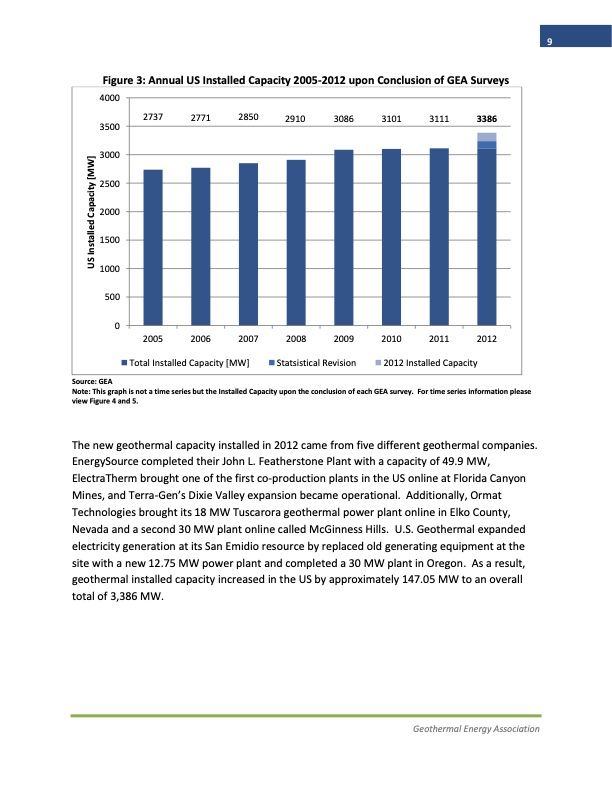

Figure 3: Annual US Installed Capacity 2005-2012 upon Conclusion of GEA Surveys 4000 3500 3000 2500 2000 1500 1000 500 0 2737 2771 2850 2910 3086 3101 3111 3386 2005 2006 Total Installed Capacity [MW] 2010 2011 2012 2012 Installed Capacity 2007 2008 Statsistical Revision 2009 Source: GEA Note: This graph is not a time series but the Installed Capacity upon the conclusion of each GEA survey. For time series information please view Figure 4 and 5. The new geothermal capacity installed in 2012 came from five different geothermal companies. EnergySource completed their John L. Featherstone Plant with a capacity of 49.9 MW, ElectraTherm brought one of the first co-production plants in the US online at Florida Canyon Mines, and Terra-Gen’s Dixie Valley expansion became operational. Additionally, Ormat Technologies brought its 18 MW Tuscarora geothermal power plant online in Elko County, Nevada and a second 30 MW plant online called McGinness Hills. U.S. Geothermal expanded electricity generation at its San Emidio resource by replaced old generating equipment at the site with a new 12.75 MW power plant and completed a 30 MW plant in Oregon. As a result, geothermal installed capacity increased in the US by approximately 147.05 MW to an overall total of 3,386 MW. Geothermal Energy Association 9 US Installed Capacity [MW]PDF Image | 2013 Annual US Geothermal Power Production and Development Report
