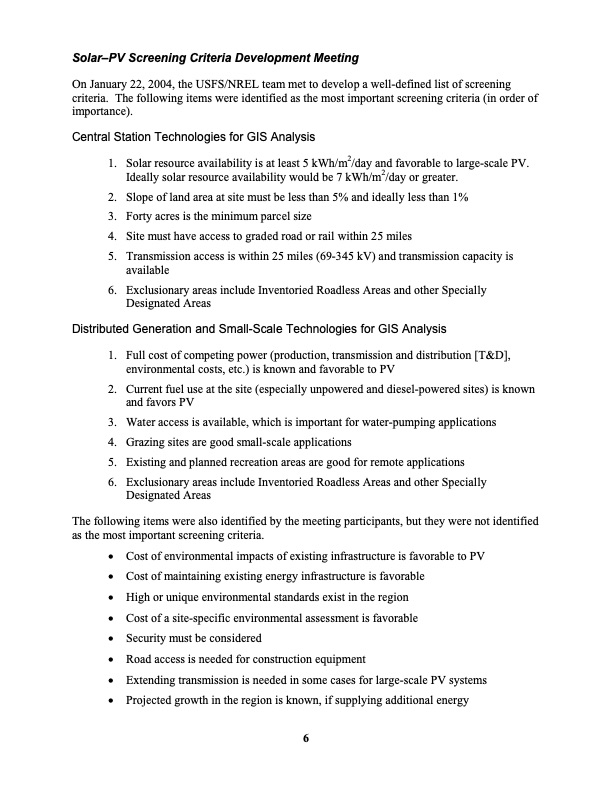

Solar–PV Screening Criteria Development Meeting On January 22, 2004, the USFS/NREL team met to develop a well-defined list of screening criteria. The following items were identified as the most important screening criteria (in order of importance). Central Station Technologies for GIS Analysis 1. Solar resource availability is at least 5 kWh/m2/day and favorable to large-scale PV. Ideally solar resource availability would be 7 kWh/m2/day or greater. 2. Slope of land area at site must be less than 5% and ideally less than 1% 3. Forty acres is the minimum parcel size 4. Site must have access to graded road or rail within 25 miles 5. Transmission access is within 25 miles (69-345 kV) and transmission capacity is available 6. Exclusionary areas include Inventoried Roadless Areas and other Specially Designated Areas Distributed Generation and Small-Scale Technologies for GIS Analysis 1. Full cost of competing power (production, transmission and distribution [T&D], environmental costs, etc.) is known and favorable to PV 2. Current fuel use at the site (especially unpowered and diesel-powered sites) is known and favors PV 3. Water access is available, which is important for water-pumping applications 4. Grazing sites are good small-scale applications 5. Existing and planned recreation areas are good for remote applications 6. Exclusionary areas include Inventoried Roadless Areas and other Specially Designated Areas The following items were also identified by the meeting participants, but they were not identified as the most important screening criteria. • Cost of environmental impacts of existing infrastructure is favorable to PV • Cost of maintaining existing energy infrastructure is favorable • High or unique environmental standards exist in the region • Cost of a site-specific environmental assessment is favorable • Security must be considered • Road access is needed for construction equipment • Extending transmission is needed in some cases for large-scale PV systems • Projected growth in the region is known, if supplying additional energy 6PDF Image | Assessing the Potential for Renewable Energy on National Forest System Lands
PDF Search Title:
Assessing the Potential for Renewable Energy on National Forest System LandsOriginal File Name Searched:
