PDF Publication Title:
Text from PDF Page: 015

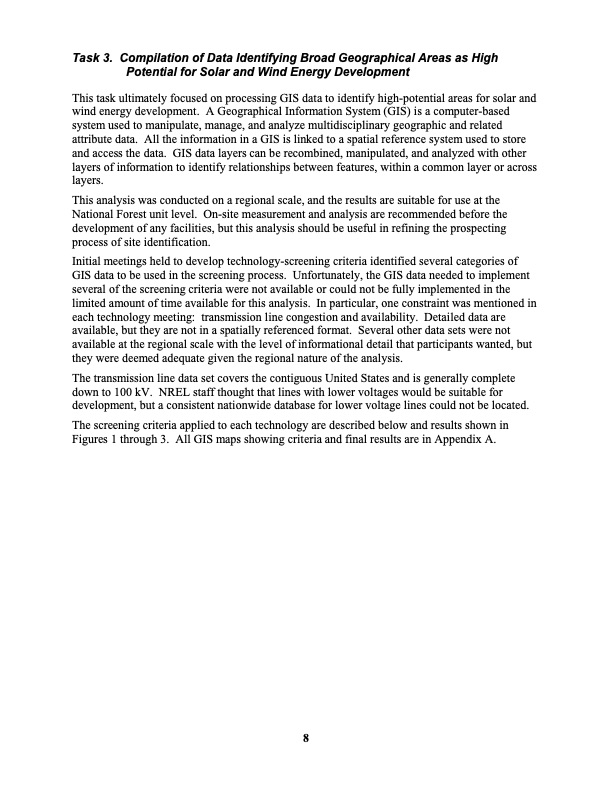

Task 3. Compilation of Data Identifying Broad Geographical Areas as High Potential for Solar and Wind Energy Development This task ultimately focused on processing GIS data to identify high-potential areas for solar and wind energy development. A Geographical Information System (GIS) is a computer-based system used to manipulate, manage, and analyze multidisciplinary geographic and related attribute data. All the information in a GIS is linked to a spatial reference system used to store and access the data. GIS data layers can be recombined, manipulated, and analyzed with other layers of information to identify relationships between features, within a common layer or across layers. This analysis was conducted on a regional scale, and the results are suitable for use at the National Forest unit level. On-site measurement and analysis are recommended before the development of any facilities, but this analysis should be useful in refining the prospecting process of site identification. Initial meetings held to develop technology-screening criteria identified several categories of GIS data to be used in the screening process. Unfortunately, the GIS data needed to implement several of the screening criteria were not available or could not be fully implemented in the limited amount of time available for this analysis. In particular, one constraint was mentioned in each technology meeting: transmission line congestion and availability. Detailed data are available, but they are not in a spatially referenced format. Several other data sets were not available at the regional scale with the level of informational detail that participants wanted, but they were deemed adequate given the regional nature of the analysis. The transmission line data set covers the contiguous United States and is generally complete down to 100 kV. NREL staff thought that lines with lower voltages would be suitable for development, but a consistent nationwide database for lower voltage lines could not be located. The screening criteria applied to each technology are described below and results shown in Figures 1 through 3. All GIS maps showing criteria and final results are in Appendix A. 8PDF Image | Assessing the Potential for Renewable Energy on National Forest System Lands
PDF Search Title:
Assessing the Potential for Renewable Energy on National Forest System LandsOriginal File Name Searched:
36759.pdfDIY PDF Search: Google It | Yahoo | Bing
