PDF Publication Title:
Text from PDF Page: 014

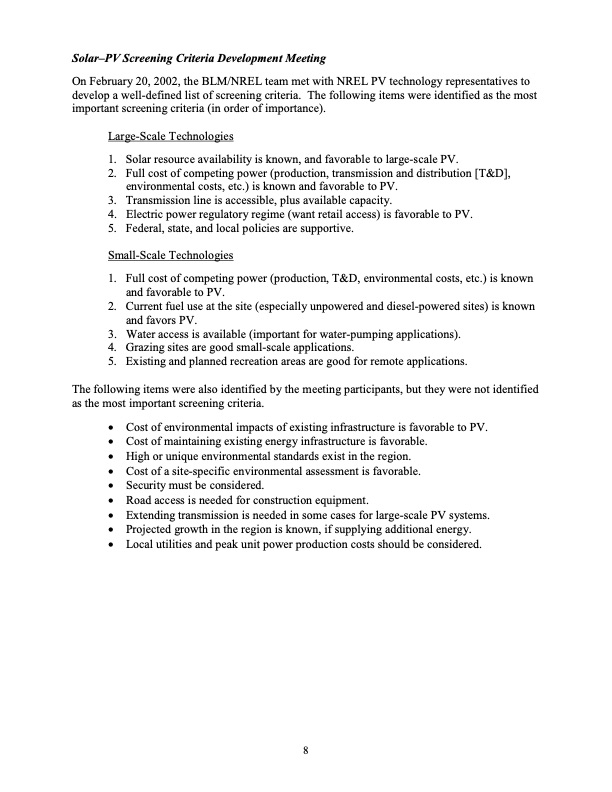

Solar–PV Screening Criteria Development Meeting On February 20, 2002, the BLM/NREL team met with NREL PV technology representatives to develop a well-defined list of screening criteria. The following items were identified as the most important screening criteria (in order of importance). Large-Scale Technologies 1. Solar resource availability is known, and favorable to large-scale PV. 2. Full cost of competing power (production, transmission and distribution [T&D], environmental costs, etc.) is known and favorable to PV. 3. Transmission line is accessible, plus available capacity. 4. Electric power regulatory regime (want retail access) is favorable to PV. 5. Federal, state, and local policies are supportive. Small-Scale Technologies 1. Full cost of competing power (production, T&D, environmental costs, etc.) is known and favorable to PV. 2. Current fuel use at the site (especially unpowered and diesel-powered sites) is known and favors PV. 3. Water access is available (important for water-pumping applications). 4. Grazing sites are good small-scale applications. 5. Existing and planned recreation areas are good for remote applications. The following items were also identified by the meeting participants, but they were not identified as the most important screening criteria. • Cost of environmental impacts of existing infrastructure is favorable to PV. • Cost of maintaining existing energy infrastructure is favorable. • High or unique environmental standards exist in the region. • Cost of a site-specific environmental assessment is favorable. • Security must be considered. • Road access is needed for construction equipment. • Extending transmission is needed in some cases for large-scale PV systems. • Projected growth in the region is known, if supplying additional energy. • Local utilities and peak unit power production costs should be considered. 8PDF Image | Assessing The Potential For Renewable Energy On Public Lands
PDF Search Title:
Assessing The Potential For Renewable Energy On Public LandsOriginal File Name Searched:
33530.pdfDIY PDF Search: Google It | Yahoo | Bing
