Text from PDF Page: 088

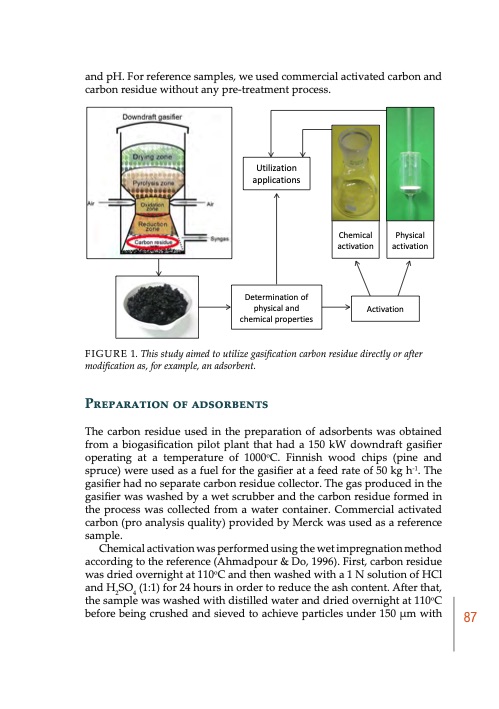

and pH. For reference samples, we used commercial activated carbon and carbon residue without any pre-treatment process. FIGURE 1. This study aimed to utilize gasification carbon residue directly or after modification as, for example, an adsorbent. Preparation of adsorbents The carbon residue used in the preparation of adsorbents was obtained from a biogasification pilot plant that had a 150 kW downdraft gasifier operating at a temperature of 1000oC. Finnish wood chips (pine and spruce) were used as a fuel for the gasifier at a feed rate of 50 kg h-1. The gasifier had no separate carbon residue collector. The gas produced in the gasifier was washed by a wet scrubber and the carbon residue formed in the process was collected from a water container. Commercial activated carbon (pro analysis quality) provided by Merck was used as a reference sample. Chemical activation was performed using the wet impregnation method according to the reference (Ahmadpour & Do, 1996). First, carbon residue was dried overnight at 110oC and then washed with a 1 N solution of HCl and H2SO4 (1:1) for 24 hours in order to reduce the ash content. After that, the sample was washed with distilled water and dried overnight at 110oC before being crushed and sieved to achieve particles under 150 μm with 87 Chemical activation Utilization applications Determination of physical and chemical properties Physical activation ActivationPDF Image | BIOMASS TO ENERGY AND CHEMICALS HighBio2 Project Publication
