Text from PDF Page: 011

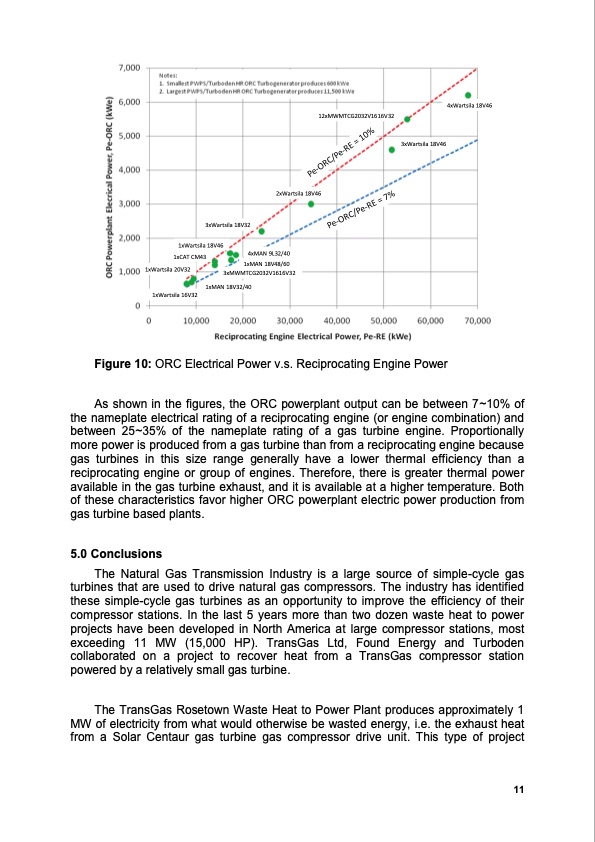

4xWartsila 18V46 12xMWMTCG2032V1616V32 2xWartsila 18V46 3xWartsila 18V46 3xWartsila 18V32 1xWartsila 18V46 1xWartsila 20V32 1xCAT CM43 4xMAN 9L32/40 1xMAN 18V48/60 3xMWMTCG2032V161 6V3 2 1xMAN 18V32/40 1xWartsila 16V32 Figure 10: ORC Electrical Power v.s. Reciprocating Engine Power As shown in the figures, the ORC powerplant output can be between 7~10% of the nameplate electrical rating of a reciprocating engine (or engine combination) and between 25~35% of the nameplate rating of a gas turbine engine. Proportionally more power is produced from a gas turbine than from a reciprocating engine because gas turbines in this size range generally have a lower thermal efficiency than a reciprocating engine or group of engines. Therefore, there is greater thermal power available in the gas turbine exhaust, and it is available at a higher temperature. Both of these characteristics favor higher ORC powerplant electric power production from gas turbine based plants. 5.0 Conclusions The Natural Gas Transmission Industry is a large source of simple-cycle gas turbines that are used to drive natural gas compressors. The industry has identified these simple-cycle gas turbines as an opportunity to improve the efficiency of their compressor stations. In the last 5 years more than two dozen waste heat to power projects have been developed in North America at large compressor stations, most exceeding 11 MW (15,000 HP). TransGas Ltd, Found Energy and Turboden collaborated on a project to recover heat from a TransGas compressor station powered by a relatively small gas turbine. The TransGas Rosetown Waste Heat to Power Plant produces approximately 1 MW of electricity from what would otherwise be wasted energy, i.e. the exhaust heat from a Solar Centaur gas turbine gas compressor drive unit. This type of project 11PDF Image | COMBINED CYCLE OPPORTUNITIES FOR SMALL
