PDF Publication Title:
Text from PDF Page: 005

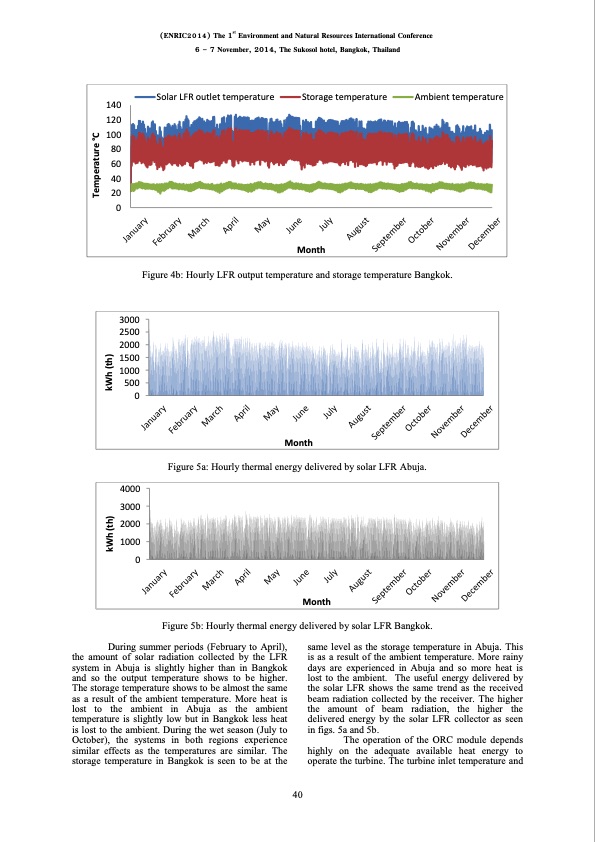

140 120 100 80 60 40 20 0 3000 2500 2000 1500 1000 500 0 4000 3000 2000 1000 0 Solar LFR outlet temperature Storage temperature Ambient temperature (ENRIC2014) The 1st Environment and Natural Resources International Conference 6 – 7 November, 2014, The Sukosol hotel, Bangkok, Thailand Month Figure 4b: Hourly LFR output temperature and storage temperature Bangkok. Month Figure 5a: Hourly thermal energy delivered by solar LFR Abuja. kWh (th) kWh (th) Temperature °C Figure 5b: Hourly thermal energy delivered by solar LFR Bangkok. During summer periods (February to April), the amount of solar radiation collected by the LFR system in Abuja is slightly higher than in Bangkok and so the output temperature shows to be higher. The storage temperature shows to be almost the same as a result of the ambient temperature. More heat is lost to the ambient in Abuja as the ambient temperature is slightly low but in Bangkok less heat is lost to the ambient. During the wet season (July to October), the systems in both regions experience similar effects as the temperatures are similar. The storage temperature in Bangkok is seen to be at the same level as the storage temperature in Abuja. This is as a result of the ambient temperature. More rainy days are experienced in Abuja and so more heat is lost to the ambient. The useful energy delivered by the solar LFR shows the same trend as the received beam radiation collected by the receiver. The higher the amount of beam radiation, the higher the delivered energy by the solar LFR collector as seen in figs. 5a and 5b. The operation of the ORC module depends highly on the adequate available heat energy to operate the turbine. The turbine inlet temperature and 40 MonthPDF Image | Comparative Performance of a Solar Concentrating Linear Fresnel Reflector for Electricity Generation in Nigeria and in Thailand
PDF Search Title:
Comparative Performance of a Solar Concentrating Linear Fresnel Reflector for Electricity Generation in Nigeria and in ThailandOriginal File Name Searched:
