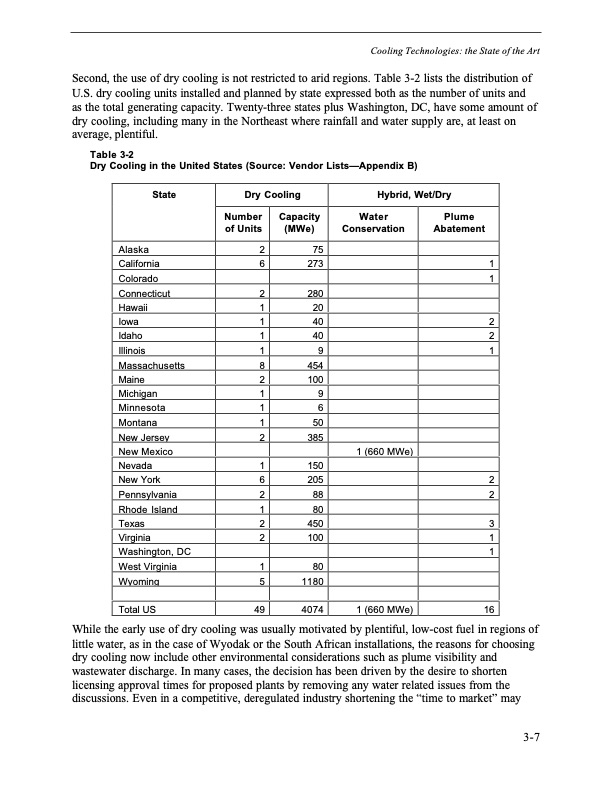

Second, the use of dry cooling is not restricted to arid regions. Table 3-2 lists the distribution of U.S. dry cooling units installed and planned by state expressed both as the number of units and as the total generating capacity. Twenty-three states plus Washington, DC, have some amount of dry cooling, including many in the Northeast where rainfall and water supply are, at least on average, plentiful. Table 3-2 Dry Cooling in the United States (Source: Vendor Lists—Appendix B) Cooling Technologies: the State of the Art State Alaska California Colorado Connecticut Hawaii Iowa Idaho Illinois Massachusetts Maine Michigan Minnesota Montana New Jersey New Mexico Nevada New York Pennsylvania Rhode Island Texas Virginia Washington, DC West Virginia Wyoming Total US Dry Cooling Number Capacity of Units (MWe) 2 75 6 273 2 280 1 20 140 140 19 8 454 2 100 1 9 1 6 1 50 2 385 1 150 Hybrid, Wet/Dry Water Conservation Plume Abatement 1 1 2 2 1 1 (660 MWe) 6 2 1 80 2450 2 100 180 5 1180 49 4074 2 2 3 1 1 205 88 1 (660 MWe) 16 While the early use of dry cooling was usually motivated by plentiful, low-cost fuel in regions of little water, as in the case of Wyodak or the South African installations, the reasons for choosing dry cooling now include other environmental considerations such as plume visibility and wastewater discharge. In many cases, the decision has been driven by the desire to shorten licensing approval times for proposed plants by removing any water related issues from the discussions. Even in a competitive, deregulated industry shortening the “time to market” may 3-7PDF Image | Comparison of Alternate Cooling Technologies for California Power Plants Economic, Environmental and Other Tradeoffs
