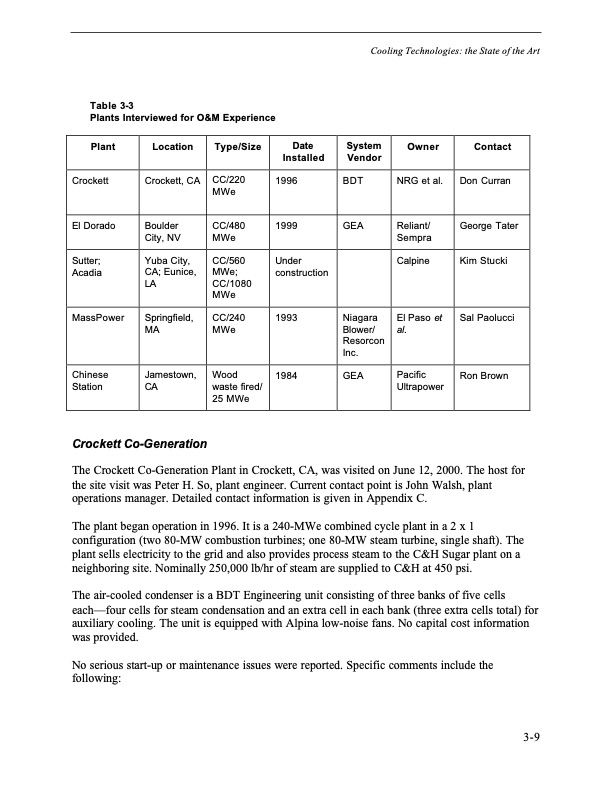

Table 3-3 Plants Interviewed for O&M Experience Cooling Technologies: the State of the Art Plant Location El Dorado Boulder City, NV Type/Size CC/480 MWe Date Installed 1999 System Vendor GEA Owner Reliant/ Sempra Contact George Tater Crockett Crockett, CA CC/220 MWe 1996 BDT NRG et al. Don Curran Sutter; Acadia Yuba City, CA; Eunice, LA CC/560 MWe; CC/1080 MWe Under construction Calpine Kim Stucki MassPower Springfield, MA CC/240 MWe 1993 Niagara Blower/ Resorcon Inc. El Paso et al. Sal Paolucci Chinese Station Jamestown, CA Wood waste fired/ 25 MWe 1984 GEA Pacific Ultrapower Ron Brown Crockett Co-Generation The Crockett Co-Generation Plant in Crockett, CA, was visited on June 12, 2000. The host for the site visit was Peter H. So, plant engineer. Current contact point is John Walsh, plant operations manager. Detailed contact information is given in Appendix C. The plant began operation in 1996. It is a 240-MWe combined cycle plant in a 2 x 1 configuration (two 80-MW combustion turbines; one 80-MW steam turbine, single shaft). The plant sells electricity to the grid and also provides process steam to the C&H Sugar plant on a neighboring site. Nominally 250,000 lb/hr of steam are supplied to C&H at 450 psi. The air-cooled condenser is a BDT Engineering unit consisting of three banks of five cells each—four cells for steam condensation and an extra cell in each bank (three extra cells total) for auxiliary cooling. The unit is equipped with Alpina low-noise fans. No capital cost information was provided. No serious start-up or maintenance issues were reported. Specific comments include the following: 3-9PDF Image | Comparison of Alternate Cooling Technologies for California Power Plants Economic, Environmental and Other Tradeoffs
