Text from PDF Page: 103

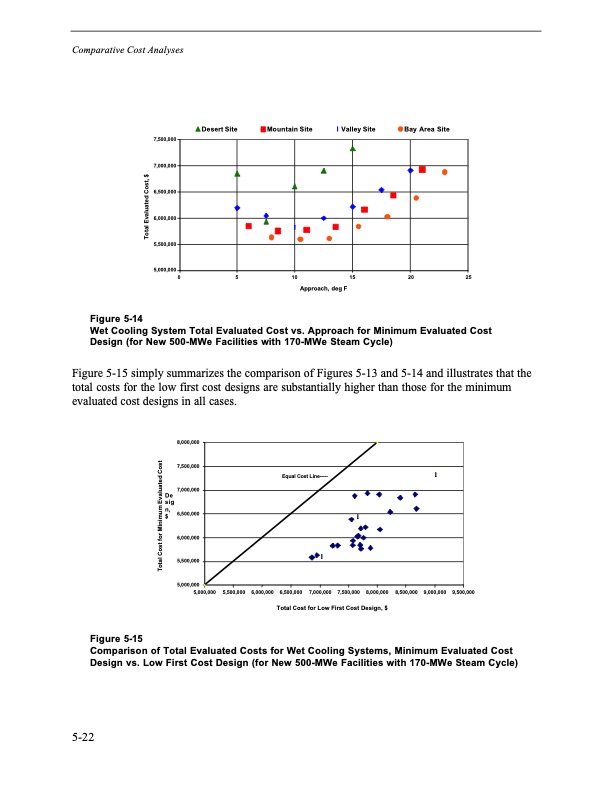

Comparative Cost Analyses Desert Site Mountain Site Valley Site Bay Area Site 7,500,000 7,000,000 6,500,000 6,000,000 5,500,000 5,000,000 0 5 10 15 20 25 Approach, deg F Figure 5-14 Wet Cooling System Total Evaluated Cost vs. Approach for Minimum Evaluated Cost Design (for New 500-MWe Facilities with 170-MWe Steam Cycle) Figure 5-15 simply summarizes the comparison of Figures 5-13 and 5-14 and illustrates that the total costs for the low first cost designs are substantially higher than those for the minimum evaluated cost designs in all cases. 8,000,000 7,500,000 7,000,000 De sig n, 6,500,000 $ 6,000,000 5,500,000 5,000,000 5,000,000 5,500,000 6,000,000 6,500,000 7,000,000 7,500,000 8,000,000 8,500,000 9,000,000 9,500,000 Total Cost for Low First Cost Design, $ Figure 5-15 Comparison of Total Evaluated Costs for Wet Cooling Systems, Minimum Evaluated Cost Design vs. Low First Cost Design (for New 500-MWe Facilities with 170-MWe Steam Cycle) Equal Cost Line----- 5-22 Total Cost for Minimum Evaluated Cost Total Evaluated Cost, $PDF Image | Comparison of Alternate Cooling Technologies for California Power Plants Economic, Environmental and Other Tradeoffs
PDF Search Title:
Comparison of Alternate Cooling Technologies for California Power Plants Economic, Environmental and Other TradeoffsOriginal File Name Searched:
