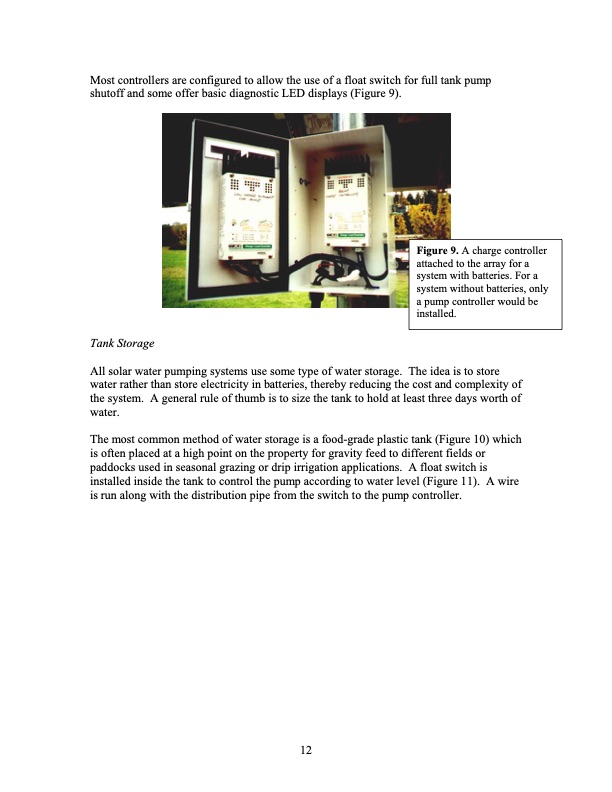

Most controllers are configured to allow the use of a float switch for full tank pump shutoff and some offer basic diagnostic LED displays (Figure 9). Tank Storage All solar water pumping systems use some type of water storage. The idea is to store water rather than store electricity in batteries, thereby reducing the cost and complexity of the system. A general rule of thumb is to size the tank to hold at least three days worth of water. The most common method of water storage is a food-grade plastic tank (Figure 10) which is often placed at a high point on the property for gravity feed to different fields or paddocks used in seasonal grazing or drip irrigation applications. A float switch is installed inside the tank to control the pump according to water level (Figure 11). A wire is run along with the distribution pipe from the switch to the pump controller. 12 Figure 9. A charge controller attached to the array for a system with batteries. For a system without batteries, only a pump controller would be installed.PDF Image | GUIDE TO SOLAR- POWERED WATER PUMPING SYSTEMS IN NEW YORK STATE
