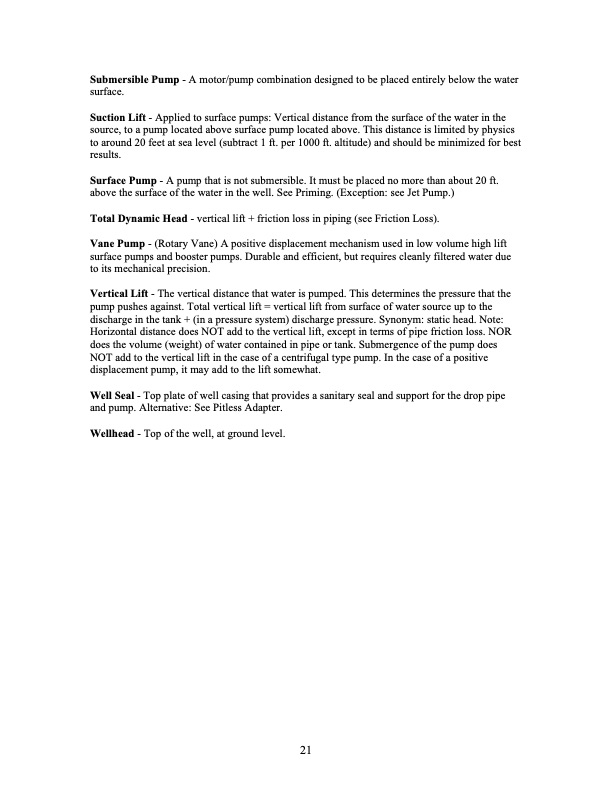

Text from PDF Page: 025
Submersible Pump - A motor/pump combination designed to be placed entirely below the water surface. Suction Lift - Applied to surface pumps: Vertical distance from the surface of the water in the source, to a pump located above surface pump located above. This distance is limited by physics to around 20 feet at sea level (subtract 1 ft. per 1000 ft. altitude) and should be minimized for best results. Surface Pump - A pump that is not submersible. It must be placed no more than about 20 ft. above the surface of the water in the well. See Priming. (Exception: see Jet Pump.) Total Dynamic Head - vertical lift + friction loss in piping (see Friction Loss). Vane Pump - (Rotary Vane) A positive displacement mechanism used in low volume high lift surface pumps and booster pumps. Durable and efficient, but requires cleanly filtered water due to its mechanical precision. Vertical Lift - The vertical distance that water is pumped. This determines the pressure that the pump pushes against. Total vertical lift = vertical lift from surface of water source up to the discharge in the tank + (in a pressure system) discharge pressure. Synonym: static head. Note: Horizontal distance does NOT add to the vertical lift, except in terms of pipe friction loss. NOR does the volume (weight) of water contained in pipe or tank. Submergence of the pump does NOT add to the vertical lift in the case of a centrifugal type pump. In the case of a positive displacement pump, it may add to the lift somewhat. Well Seal - Top plate of well casing that provides a sanitary seal and support for the drop pipe and pump. Alternative: See Pitless Adapter. Wellhead - Top of the well, at ground level. 21PDF Image | GUIDE TO SOLAR- POWERED WATER PUMPING SYSTEMS IN NEW YORK STATE
