PDF Publication Title:
Text from PDF Page: 004

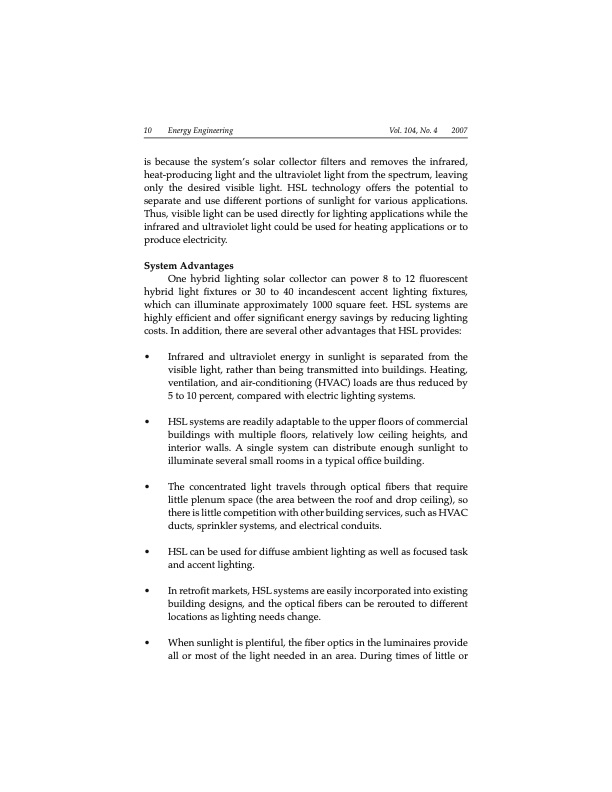

10 Energy Engineering Vol. 104, No. 4 2007 is because the system’s solar collector filters and removes the infrared, heat-producing light and the ultraviolet light from the spectrum, leaving only the desired visible light. HSL technology offers the potential to separate and use different portions of sunlight for various applications. Thus, visible light can be used directly for lighting applications while the infrared and ultraviolet light could be used for heating applications or to produce electricity. System Advantages One hybrid lighting solar collector can power 8 to 12 fluorescent hybrid light fixtures or 30 to 40 incandescent accent lighting fixtures, which can illuminate approximately 1000 square feet. HSL systems are highly efficient and offer significant energy savings by reducing lighting costs. In addition, there are several other advantages that HSL provides: • Infrared and ultraviolet energy in sunlight is separated from the visible light, rather than being transmitted into buildings. Heating, ventilation, and air-conditioning (HVAC) loads are thus reduced by 5 to 10 percent, compared with electric lighting systems. • HSL systems are readily adaptable to the upper floors of commercial buildings with multiple floors, relatively low ceiling heights, and interior walls. A single system can distribute enough sunlight to illuminate several small rooms in a typical office building. • The concentrated light travels through optical fibers that require little plenum space (the area between the roof and drop ceiling), so there is little competition with other building services, such as HVAC ducts, sprinkler systems, and electrical conduits. • HSL can be used for diffuse ambient lighting as well as focused task and accent lighting. • In retrofit markets, HSL systems are easily incorporated into existing building designs, and the optical fibers can be rerouted to different locations as lighting needs change. • When sunlight is plentiful, the fiber optics in the luminaires provide all or most of the light needed in an area. During times of little orPDF Image | Hybrid Solar Lighting Provides Energy Savings and Reduces Waste Heat
PDF Search Title:
Hybrid Solar Lighting Provides Energy Savings and Reduces Waste HeatOriginal File Name Searched:
2007_06_journal_energy_engr_vol_104_No4.pdfDIY PDF Search: Google It | Yahoo | Bing
