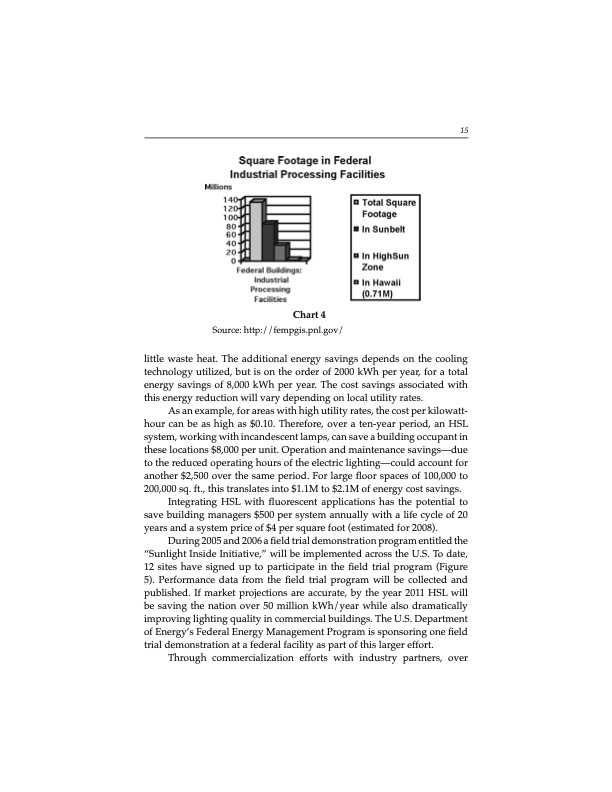

15 Chart 4 Source: http://fempgis.pnl.gov/ little waste heat. The additional energy savings depends on the cooling technology utilized, but is on the order of 2000 kWh per year, for a total energy savings of 8,000 kWh per year. The cost savings associated with this energy reduction will vary depending on local utility rates. As an example, for areas with high utility rates, the cost per kilowatt- hour can be as high as $0.10. Therefore, over a ten-year period, an HSL system, working with incandescent lamps, can save a building occupant in these locations $8,000 per unit. Operation and maintenance savings—due to the reduced operating hours of the electric lighting—could account for another $2,500 over the same period. For large floor spaces of 100,000 to 200,000 sq. ft., this translates into $1.1M to $2.1M of energy cost savings. Integrating HSL with fluorescent applications has the potential to save building managers $500 per system annually with a life cycle of 20 years and a system price of $4 per square foot (estimated for 2008). During 2005 and 2006 a field trial demonstration program entitled the “Sunlight Inside Initiative,” will be implemented across the U.S. To date, 12 sites have signed up to participate in the field trial program (Figure 5). Performance data from the field trial program will be collected and published. If market projections are accurate, by the year 2011 HSL will be saving the nation over 50 million kWh/year while also dramatically improving lighting quality in commercial buildings. The U.S. Department of Energy’s Federal Energy Management Program is sponsoring one field trial demonstration at a federal facility as part of this larger effort. Through commercialization efforts with industry partners, overPDF Image | Hybrid Solar Lighting Provides Energy Savings and Reduces Waste Heat
