Text from PDF Page: 011

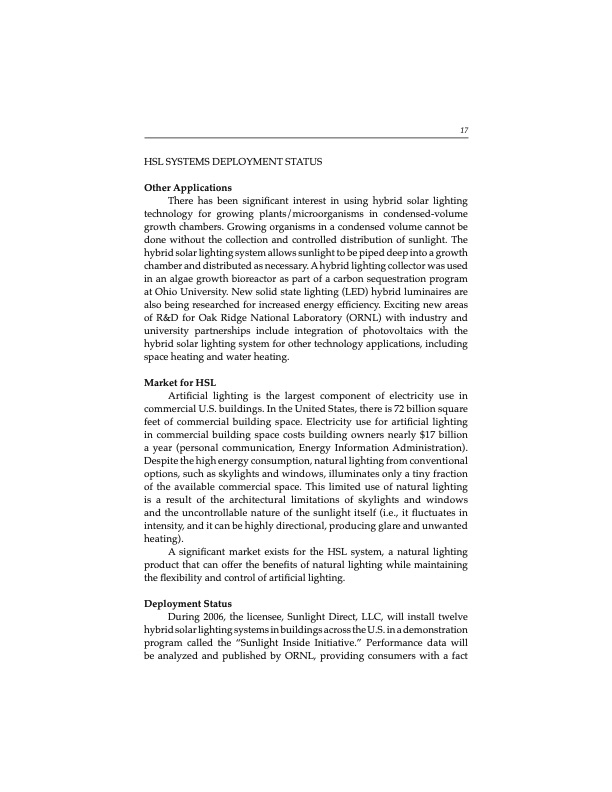

HSL SYSTEMS DEPLOYMENT STATUS Other Applications There has been significant interest in using hybrid solar lighting technology for growing plants/microorganisms in condensed-volume growth chambers. Growing organisms in a condensed volume cannot be done without the collection and controlled distribution of sunlight. The hybrid solar lighting system allows sunlight to be piped deep into a growth chamber and distributed as necessary. A hybrid lighting collector was used in an algae growth bioreactor as part of a carbon sequestration program at Ohio University. New solid state lighting (LED) hybrid luminaires are also being researched for increased energy efficiency. Exciting new areas of R&D for Oak Ridge National Laboratory (ORNL) with industry and university partnerships include integration of photovoltaics with the hybrid solar lighting system for other technology applications, including space heating and water heating. Market for HSL Artificial lighting is the largest component of electricity use in commercial U.S. buildings. In the United States, there is 72 billion square feet of commercial building space. Electricity use for artificial lighting in commercial building space costs building owners nearly $17 billion a year (personal communication, Energy Information Administration). Despite the high energy consumption, natural lighting from conventional options, such as skylights and windows, illuminates only a tiny fraction of the available commercial space. This limited use of natural lighting is a result of the architectural limitations of skylights and windows and the uncontrollable nature of the sunlight itself (i.e., it fluctuates in intensity, and it can be highly directional, producing glare and unwanted heating). A significant market exists for the HSL system, a natural lighting product that can offer the benefits of natural lighting while maintaining the flexibility and control of artificial lighting. Deployment Status During 2006, the licensee, Sunlight Direct, LLC, will install twelve hybrid solar lighting systems in buildings across the U.S. in a demonstration program called the “Sunlight Inside Initiative.” Performance data will be analyzed and published by ORNL, providing consumers with a fact 17PDF Image | Hybrid Solar Lighting Provides Energy Savings and Reduces Waste Heat
PDF Search Title:
Hybrid Solar Lighting Provides Energy Savings and Reduces Waste HeatOriginal File Name Searched:
2007_06_journal_energy_engr_vol_104_No4.pdfDIY PDF Search: Google It | Yahoo | Bing
