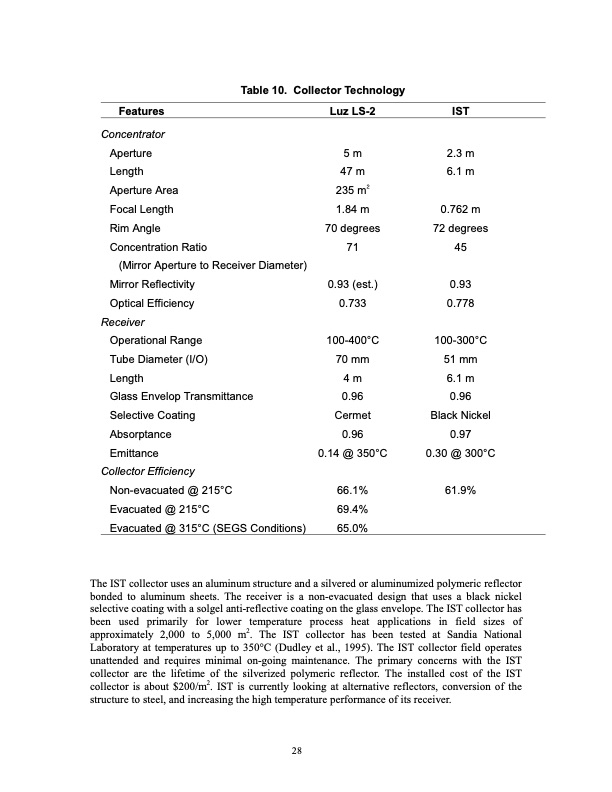

Features Concentrator Aperture Length Aperture Area Focal Length Rim Angle Concentration Ratio (Mirror Aperture to Receiver Diameter) Mirror Reflectivity Optical Efficiency Receiver Operational Range Tube Diameter (I/O) Length Glass Envelop Transmittance Selective Coating Absorptance Emittance Collector Efficiency Non-evacuated @ 215°C Evacuated @ 215°C Evacuated @ 315°C (SEGS Conditions) 5 m 47 m 235 m2 1.84 m 70 degrees 71 0.93 (est.) 0.733 100-400°C 70 mm 4 m 0.96 Cermet 0.96 0.14 @ 350°C 66.1% 69.4% 65.0% IST 2.3 m 6.1 m 0.762 m 72 degrees 45 0.93 0.778 100-300°C 51 mm 6.1 m 0.96 Black Nickel 0.97 0.30 @ 300°C 61.9% Table 10. Collector Technology Luz LS-2 The IST collector uses an aluminum structure and a silvered or aluminumized polymeric reflector bonded to aluminum sheets. The receiver is a non-evacuated design that uses a black nickel selective coating with a solgel anti-reflective coating on the glass envelope. The IST collector has been used primarily for lower temperature process heat applications in field sizes of approximately 2,000 to 5,000 m2. The IST collector has been tested at Sandia National Laboratory at temperatures up to 350°C (Dudley et al., 1995). The IST collector field operates unattended and requires minimal on-going maintenance. The primary concerns with the IST collector are the lifetime of the silverized polymeric reflector. The installed cost of the IST collector is about $200/m2. IST is currently looking at alternative reflectors, conversion of the structure to steel, and increasing the high temperature performance of its receiver. 28PDF Image | Modular Trough Power Plant Cycle and Systems Analysis
