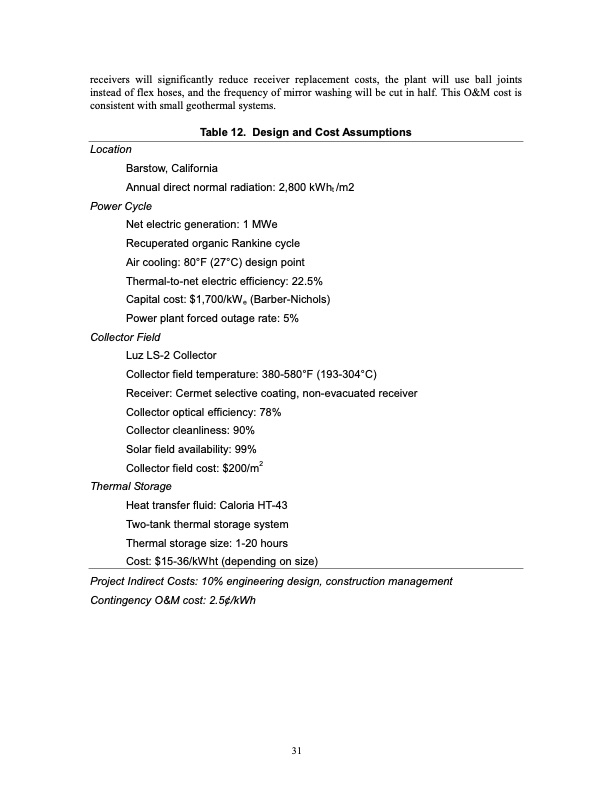

receivers will significantly reduce receiver replacement costs, the plant will use ball joints instead of flex hoses, and the frequency of mirror washing will be cut in half. This O&M cost is consistent with small geothermal systems. Table 12. Design and Cost Assumptions Location Barstow, California Annual direct normal radiation: 2,800 kWht /m2 Power Cycle Net electric generation: 1 MWe Recuperated organic Rankine cycle Air cooling: 80°F (27°C) design point Thermal-to-net electric efficiency: 22.5% Capital cost: $1,700/kWe (Barber-Nichols) Power plant forced outage rate: 5% Collector Field Luz LS-2 Collector Collector field temperature: 380-580°F (193-304°C) Receiver: Cermet selective coating, non-evacuated receiver Collector optical efficiency: 78% Collector cleanliness: 90% Solar field availability: 99% Collector field cost: $200/m2 Thermal Storage Heat transfer fluid: Caloria HT-43 Two-tank thermal storage system Thermal storage size: 1-20 hours Cost: $15-36/kWht (depending on size) Project Indirect Costs: 10% engineering design, construction management Contingency O&M cost: 2.5¢/kWh 31PDF Image | Modular Trough Power Plant Cycle and Systems Analysis
