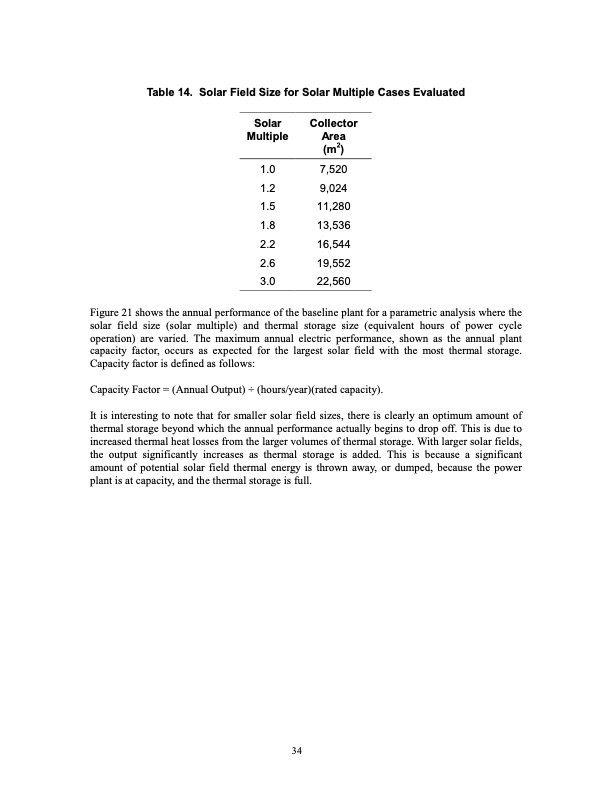

Table 14. Solar Field Size for Solar Multiple Cases Evaluated Solar Collector Multiple Area (m2) 1.0 7,520 1.2 9,024 1.5 11,280 1.8 13,536 2.2 16,544 2.6 19,552 3.0 22,560 Figure 21 shows the annual performance of the baseline plant for a parametric analysis where the solar field size (solar multiple) and thermal storage size (equivalent hours of power cycle operation) are varied. The maximum annual electric performance, shown as the annual plant capacity factor, occurs as expected for the largest solar field with the most thermal storage. Capacity factor is defined as follows: Capacity Factor = (Annual Output) รท (hours/year)(rated capacity). It is interesting to note that for smaller solar field sizes, there is clearly an optimum amount of thermal storage beyond which the annual performance actually begins to drop off. This is due to increased thermal heat losses from the larger volumes of thermal storage. With larger solar fields, the output significantly increases as thermal storage is added. This is because a significant amount of potential solar field thermal energy is thrown away, or dumped, because the power plant is at capacity, and the thermal storage is full. 34PDF Image | Modular Trough Power Plant Cycle and Systems Analysis
