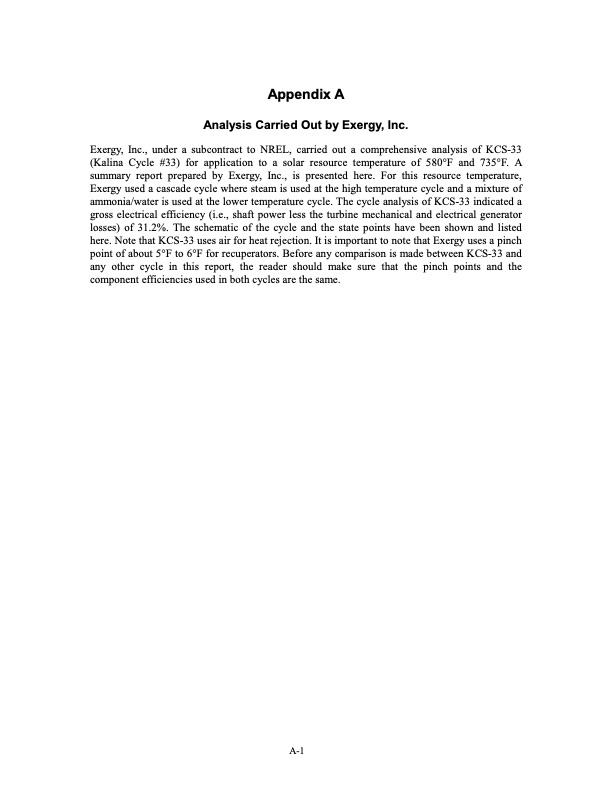

Appendix A Analysis Carried Out by Exergy, Inc. Exergy, Inc., under a subcontract to NREL, carried out a comprehensive analysis of KCS-33 (Kalina Cycle #33) for application to a solar resource temperature of 580°F and 735°F. A summary report prepared by Exergy, Inc., is presented here. For this resource temperature, Exergy used a cascade cycle where steam is used at the high temperature cycle and a mixture of ammonia/water is used at the lower temperature cycle. The cycle analysis of KCS-33 indicated a gross electrical efficiency (i.e., shaft power less the turbine mechanical and electrical generator losses) of 31.2%. The schematic of the cycle and the state points have been shown and listed here. Note that KCS-33 uses air for heat rejection. It is important to note that Exergy uses a pinch point of about 5°F to 6°F for recuperators. Before any comparison is made between KCS-33 and any other cycle in this report, the reader should make sure that the pinch points and the component efficiencies used in both cycles are the same. A-1PDF Image | Modular Trough Power Plant Cycle and Systems Analysis
