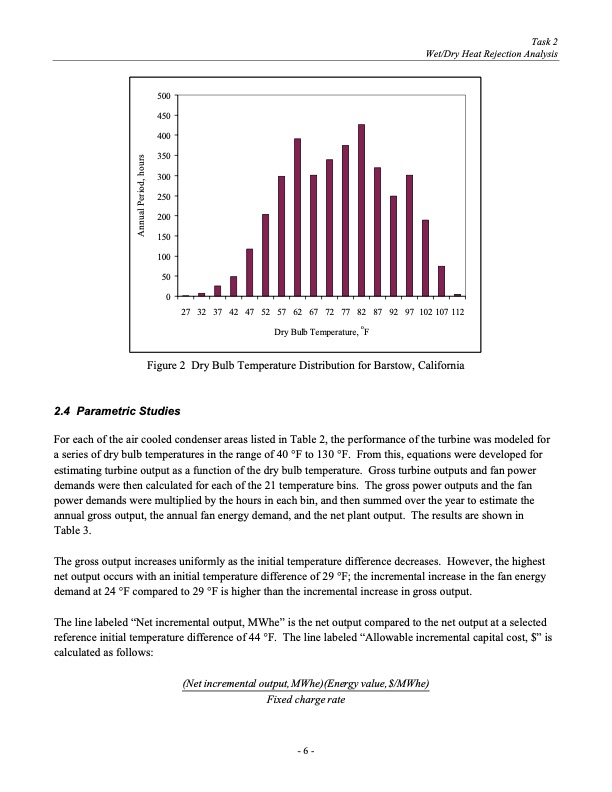

Figure 2 Dry Bulb Temperature Distribution for Barstow, California 2.4 Parametric Studies For each of the air cooled condenser areas listed in Table 2, the performance of the turbine was modeled for a series of dry bulb temperatures in the range of 40 °F to 130 °F. From this, equations were developed for estimating turbine output as a function of the dry bulb temperature. Gross turbine outputs and fan power demands were then calculated for each of the 21 temperature bins. The gross power outputs and the fan power demands were multiplied by the hours in each bin, and then summed over the year to estimate the annual gross output, the annual fan energy demand, and the net plant output. The results are shown in Table 3. The gross output increases uniformly as the initial temperature difference decreases. However, the highest net output occurs with an initial temperature difference of 29 °F; the incremental increase in the fan energy demand at 24 °F compared to 29 °F is higher than the incremental increase in gross output. The line labeled “Net incremental output, MWhe” is the net output compared to the net output at a selected reference initial temperature difference of 44 °F. The line labeled “Allowable incremental capital cost, $” is calculated as follows: (Net incremental output,MWhe)(Energy value,$/MWhe) Fixed charge rate Task 2 Wet/Dry Heat Rejection Analysis 500 450 400 350 300 250 200 150 100 50 0 27 32 37 42 47 52 57 62 67 72 77 82 87 92 97 102 107 112 Dry Bulb Temperature, oF -6- Annual Period, hoursPDF Image | Nexant Parabolic Trough Solar Power Plant Systems Analysis
