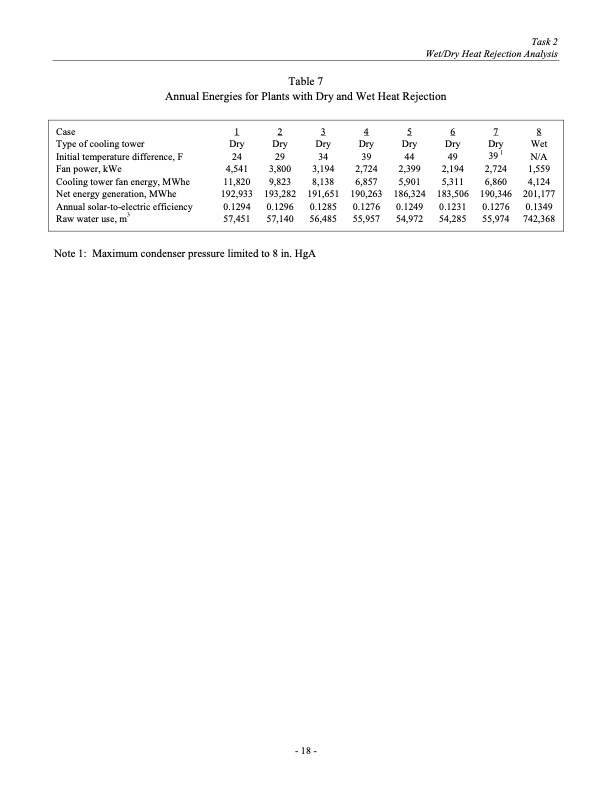

Task 2 Wet/Dry Heat Rejection Analysis Table 7 Annual Energies for Plants with Dry and Wet Heat Rejection Case 12345678 Type of cooling tower Initial temperature difference, F Fan power, kWe Cooling tower fan energy, MWhe Net energy generation, MWhe Annual solar-to-electric efficiency Raw water use, m3 Dry 24 4,541 11,820 192,933 0.1294 57,451 Dry 29 3,800 9,823 193,282 0.1296 57,140 Dry 34 3,194 8,138 191,651 0.1285 56,485 Dry 39 2,724 6,857 190,263 0.1276 55,957 Dry 44 2,399 5,901 186,324 0.1249 54,972 Dry 49 2,194 5,311 183,506 0.1231 54,285 Dry 39 1 2,724 6,860 190,346 0.1276 55,974 Wet N/A 1,559 4,124 201,177 0.1349 742,368 Note 1: Maximum condenser pressure limited to 8 in. HgA - 18 -PDF Image | Nexant Parabolic Trough Solar Power Plant Systems Analysis
