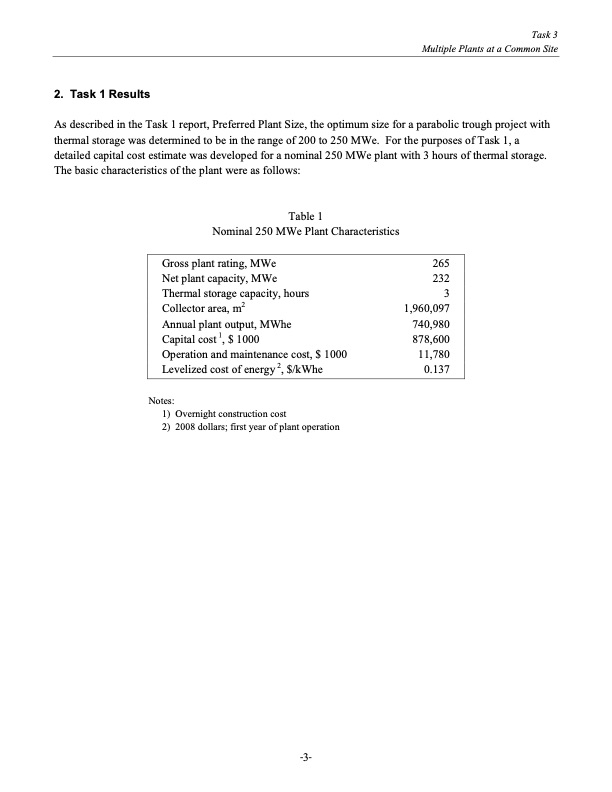

Text from PDF Page: 007
2. Task 1 Results As described in the Task 1 report, Preferred Plant Size, the optimum size for a parabolic trough project with thermal storage was determined to be in the range of 200 to 250 MWe. For the purposes of Task 1, a detailed capital cost estimate was developed for a nominal 250 MWe plant with 3 hours of thermal storage. The basic characteristics of the plant were as follows: Table 1 Nominal 250 MWe Plant Characteristics Gross plant rating, MWe Net plant capacity, MWe Thermal storage capacity, hours Collector area, m2 Annual plant output, MWhe Capital cost 1, $ 1000 Operation and maintenance cost, $ 1000 Levelized cost of energy 2, $/kWhe Notes: 1) Overnight construction cost 2) 2008 dollars; first year of plant operation 265 232 3 1,960,097 740,980 878,600 11,780 0.137 Task 3 Multiple Plants at a Common Site -3-PDF Image | Nexant Parabolic Trough Solar Power Plant Systems Analysis 2005
