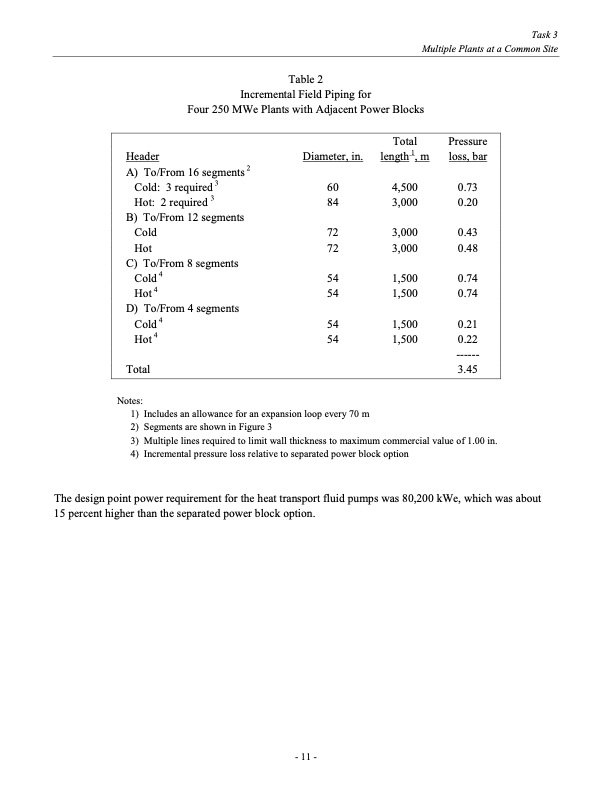

Text from PDF Page: 015
Table 2 Incremental Field Piping for Four 250 MWe Plants with Adjacent Power Blocks Task 3 Multiple Plants at a Common Site Header A) To/From16segments2 Cold: 3required3 Hot: 2 required 3 B) To/From 12 segments Cold Hot C) To/From 8 segments Cold 4 Hot 4 D) To/From 4 segments Cold 4 Hot 4 Total Total Diameter, in. length 1, 60 4,500 84 3,000 72 3,000 72 3,000 54 1,500 54 1,500 54 1,500 54 1,500 m Pressure loss, bar 0.73 0.20 0.43 0.48 0.74 0.74 0.21 0.22 ------ 3.45 Notes: 1) Includes an allowance for an expansion loop every 70 m 2) Segments are shown in Figure 3 3) Multiple lines required to limit wall thickness to maximum commercial value of 1.00 in. 4) Incremental pressure loss relative to separated power block option The design point power requirement for the heat transport fluid pumps was 80,200 kWe, which was about 15 percent higher than the separated power block option. - 11 -PDF Image | Nexant Parabolic Trough Solar Power Plant Systems Analysis 2005
