PDF Publication Title:
Text from PDF Page: 014

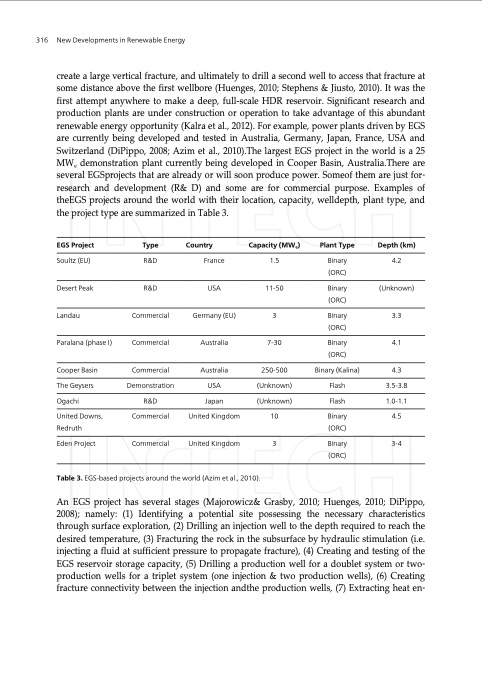

316 New Developments in Renewable Energy create a large vertical fracture, and ultimately to drill a second well to access that fracture at some distance above the first wellbore (Huenges, 2010; Stephens & Jiusto, 2010). It was the first attempt anywhere to make a deep, full-scale HDR reservoir. Significant research and production plants are under construction or operation to take advantage of this abundant renewable energy opportunity (Kalra et al., 2012). For example, power plants driven by EGS are currently being developed and tested in Australia, Germany, Japan, France, USA and Switzerland (DiPippo, 2008; Azim et al., 2010).The largest EGS project in the world is a 25 MWe demonstration plant currently being developed in Cooper Basin, Australia.There are several EGSprojects that are already or will soon produce power. Someof them are just for‐ research and development (R& D) and some are for commercial purpose. Examples of theEGS projects around the world with their location, capacity, welldepth, plant type, and the project type are summarized in Table 3. EGS Project Soultz (EU) Desert Peak Landau Paralana (phase I) Cooper Basin Capacity (MWe) 1.5 11-50 3 7-30 United Kingdom 10 United Kingdom 3 Plant Type Binary (ORC) Binary (ORC) Binary (ORC) Binary (ORC) Binary (ORC) Binary (ORC) Depth (km) 4.2 (Unknown) 3.3 4.1 4.3 3.5-3.8 1.0-1.1 4.5 3-4 Type R&D R&D Commercial Commercial Commercial Commercial Country France USA Germany (EU) Australia Australia Commercial Demonstration 250-500 (Unknown) Binary (Kalina) Flash The Geysers Ogachi R&D Japan (Unknown) Flash USA United Downs, Redruth Eden Project Table 3. EGS-based projects around the world (Azim et al., 2010). An EGS project has several stages (Majorowicz& Grasby, 2010; Huenges, 2010; DiPippo, 2008); namely: (1) Identifying a potential site possessing the necessary characteristics through surface exploration, (2) Drilling an injection well to the depth required to reach the desired temperature, (3) Fracturing the rock in the subsurface by hydraulic stimulation (i.e. injecting a fluid at sufficient pressure to propagate fracture), (4) Creating and testing of the EGS reservoir storage capacity, (5) Drilling a production well for a doublet system or two‐ production wells for a triplet system (one injection & two production wells), (6) Creating fracture connectivity between the injection andthe production wells, (7) Extracting heat en‐PDF Image | ORC-Based Geothermal Power Generation and CO2- Based EGS for Combined Green Power Generation and CO2 Sequestration
PDF Search Title:
ORC-Based Geothermal Power Generation and CO2- Based EGS for Combined Green Power Generation and CO2 SequestrationOriginal File Name Searched:
43619.pdfDIY PDF Search: Google It | Yahoo | Bing
