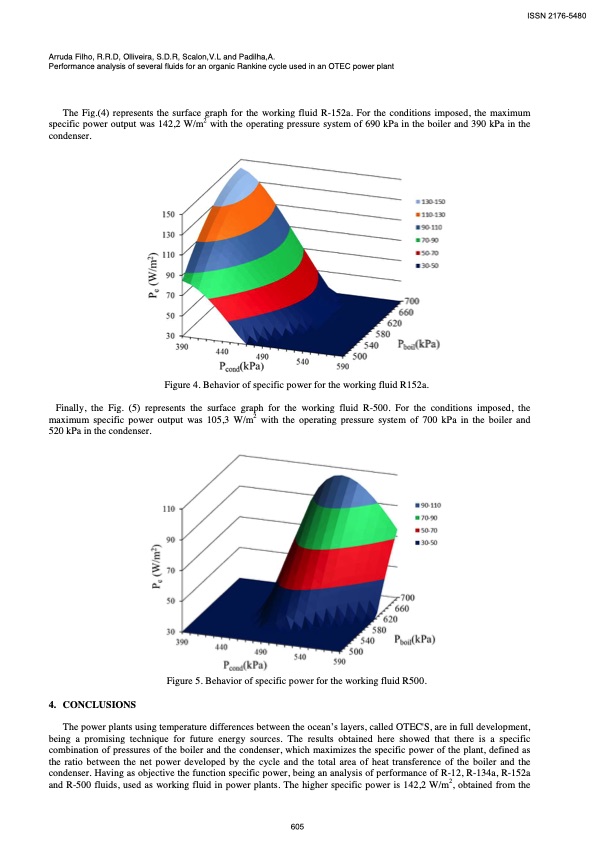

Arruda Filho, R.R.D, Olliveira, S.D.R, Scalon,V.L and Padilha,A. Performance analysis of several fluids for an organic Rankine cycle used in an OTEC power plant The Fig.(4) represents the surface graph for the working fluid R-152a. For the conditions imposed, the maximum 2 specific power output was 142,2 W/m with the operating pressure system of 690 kPa in the boiler and 390 kPa in the condenser. Figure 4. Behavior of specific power for the working fluid R152a. ISSN 2176-5480 Finally, the Fig. (5) represents the surface graph for the working fluid R-500. For the conditions imposed, the 2 maximum specific power output was 105,3 W/m with the operating pressure system of 700 kPa in the boiler and 520 kPa in the condenser. 4. CONCLUSIONS Figure 5. Behavior of specific power for the working fluid R500. The power plants using temperature differences between the ocean’s layers, called OTEC'S, are in full development, being a promising technique for future energy sources. The results obtained here showed that there is a specific combination of pressures of the boiler and the condenser, which maximizes the specific power of the plant, defined as the ratio between the net power developed by the cycle and the total area of heat transference of the boiler and the condenser. Having as objective the function specific power, being an analysis of performance of R-12, R-134a, R-152a 2 and R-500 fluids, used as working fluid in power plants. The higher specific power is 142,2 W/m , obtained from the 605PDF Image | PERFORMANCE ANALYSIS OF FLUIDS R12, R152A, R134A AND R500 FOR AN ORGANIC RANKINE CYCLE USED IN AN OTEC POWER PLANT
